Youth XR24
Simple, functional, reliable. Sometimes less is more. With a lightweight aluminum frame, single-chainring drivetrain, and a rigid no-nonsense fork XR24 is just about everything a kid needs for two-wheeled adventures.
Lightweight aluminum frame, zer
Simple, functional, reliable. Sometimes less is more. With a lightweight aluminum frame, single-chainring drivetrain, and a rigid no-nonsense fork XR24 is just about everything a kid needs for two-wheeled adventures.

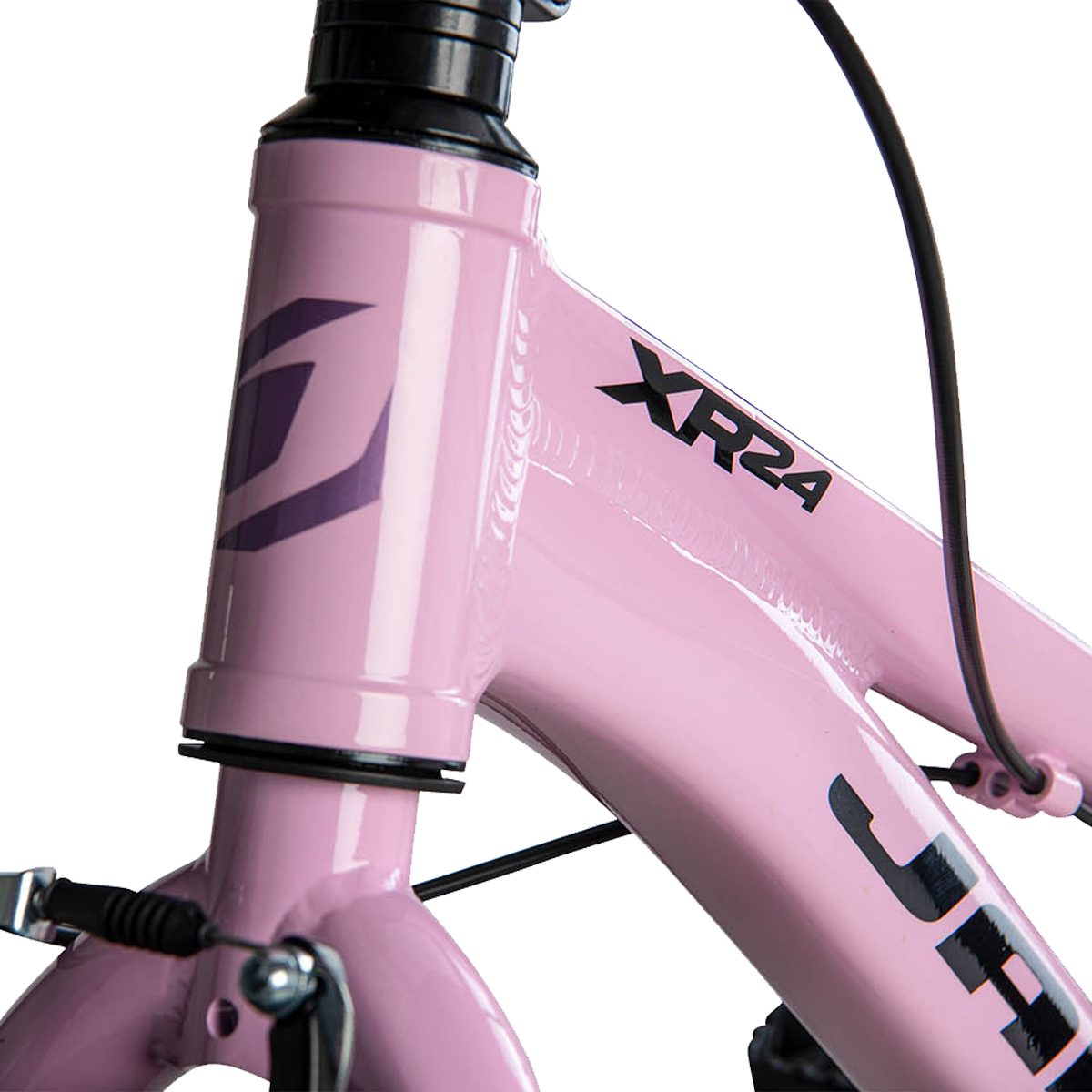

- Lightweight aluminum frame, zero-stack head tube, replaceable derailleur hanger
- Hi-tensile uncrown fork
- Alloy 36H black anodized disc rims, alloy MTB hubs, nickel-plated spokes
- Shimano RevoShift, 7-speed
- Forged alloy crank with protective outer rock-ring
- Sealed cartridge bottom bracket
- Alloy linear pull brakes with Tektro youth specific levers
- Full alloy cockpit, stem, bar and set post
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|

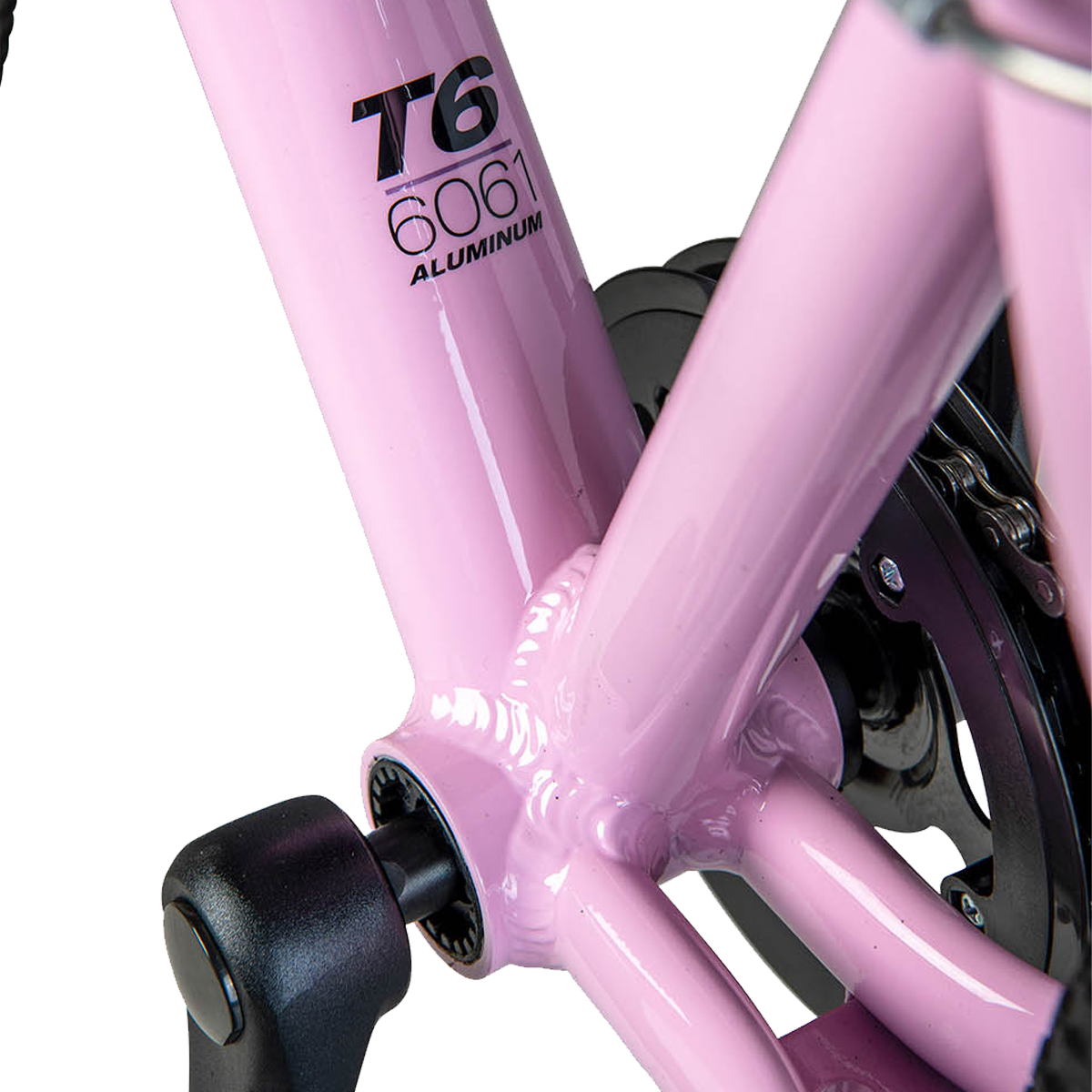

| FRAME | 6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger |

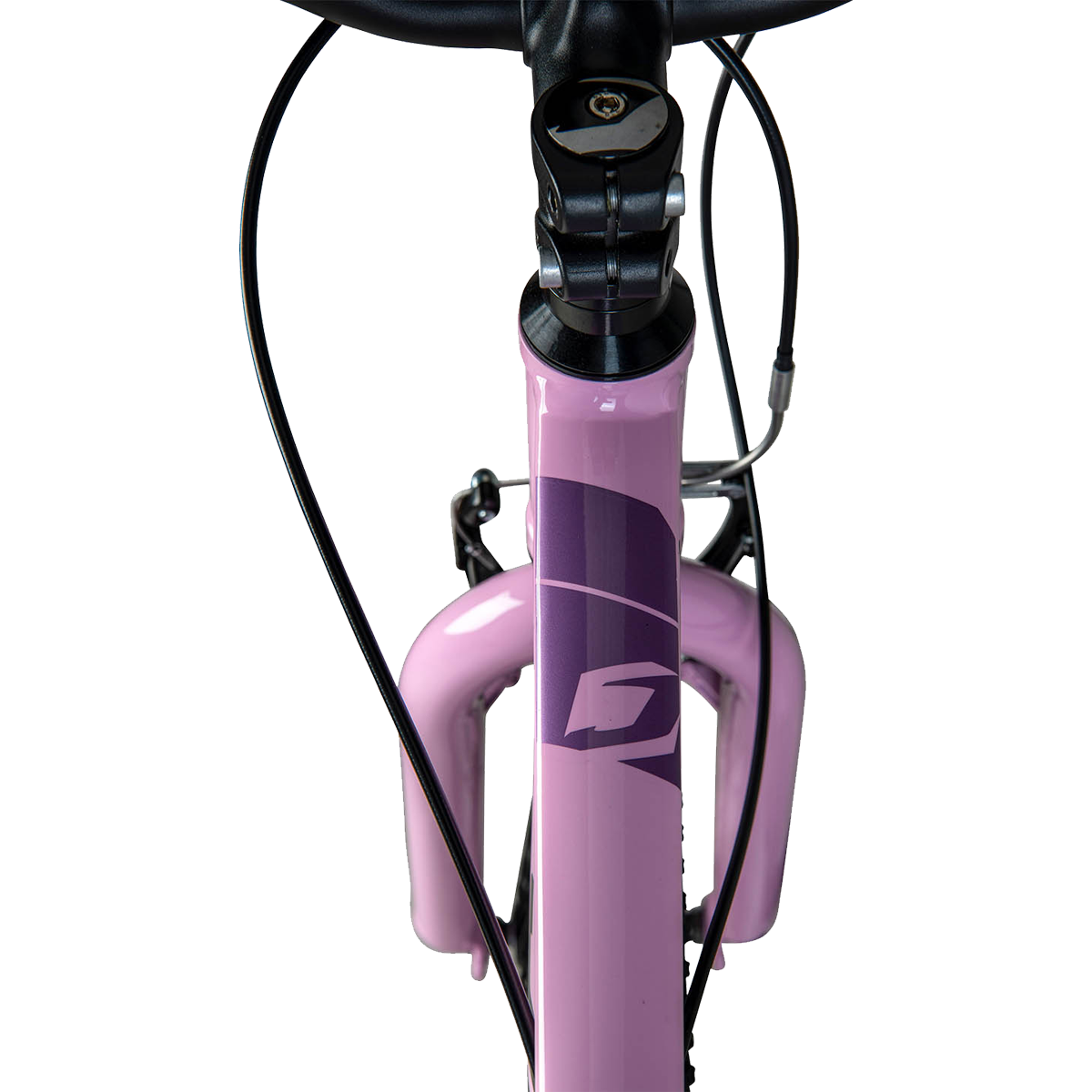

| FORK | Unicrown, hi-tensile steel, 28.6 steerer |
| HEADSET | Zero-stack internal cup threadless, 15mm cone spacer |
| WHEELS | Alloy 36H black anodized rims with brushed brake tracks, alloy MTB hubs with nutted axles, 14G black electroplated spokes |
| TIRES | CST MTB Sport, 24 x 1.95" |
| DERAILLEURS | Shimano TY300 rear |
| SHIFT LEVERS | Shimano RevoShift 35, 7-speed |
| CHAIN | KMC Z51 |
| CASSETTE | Shimano TZ500 freewheel, 14-28, 7-speed |

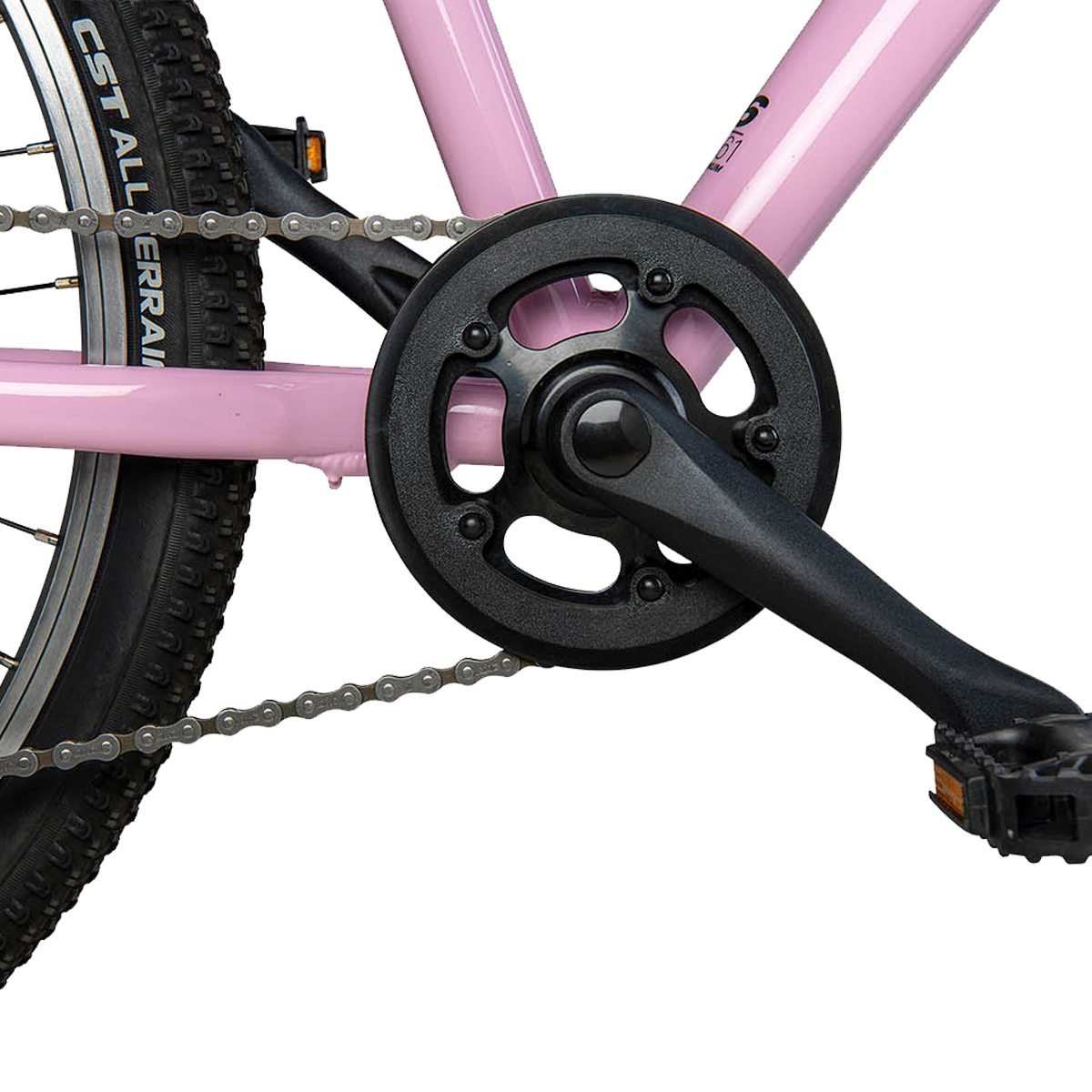

| CRANKSET | Forged alloy crank, 152mm, 32T chainring and protective outer rock-ring |
| BB SET | Sealed cartridge |
| PEDALS | MTB platform, hi-impact resin |
| BRAKESET | Alloy linear pull type with Tektro youth specific levers |
| HANDLEBAR | MTB alloy riser, 6 ̊ sweep x 20mm rise x 580mm wide |
| STEM | MTB alloy threadless, 15 ̊ rise x 60mm extension |
| GRIPS | Kraton for Grip Shift |
| SEAT POST | Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp |
| SADDLE | Jamis ATB Youth |
| SIZES | 12" |
| COLOR | Gloss Black, Ninja Green, Sky Blue, Violet Powder |
| WEIGHT | 24.00 lbs |
* Specs subject to change
