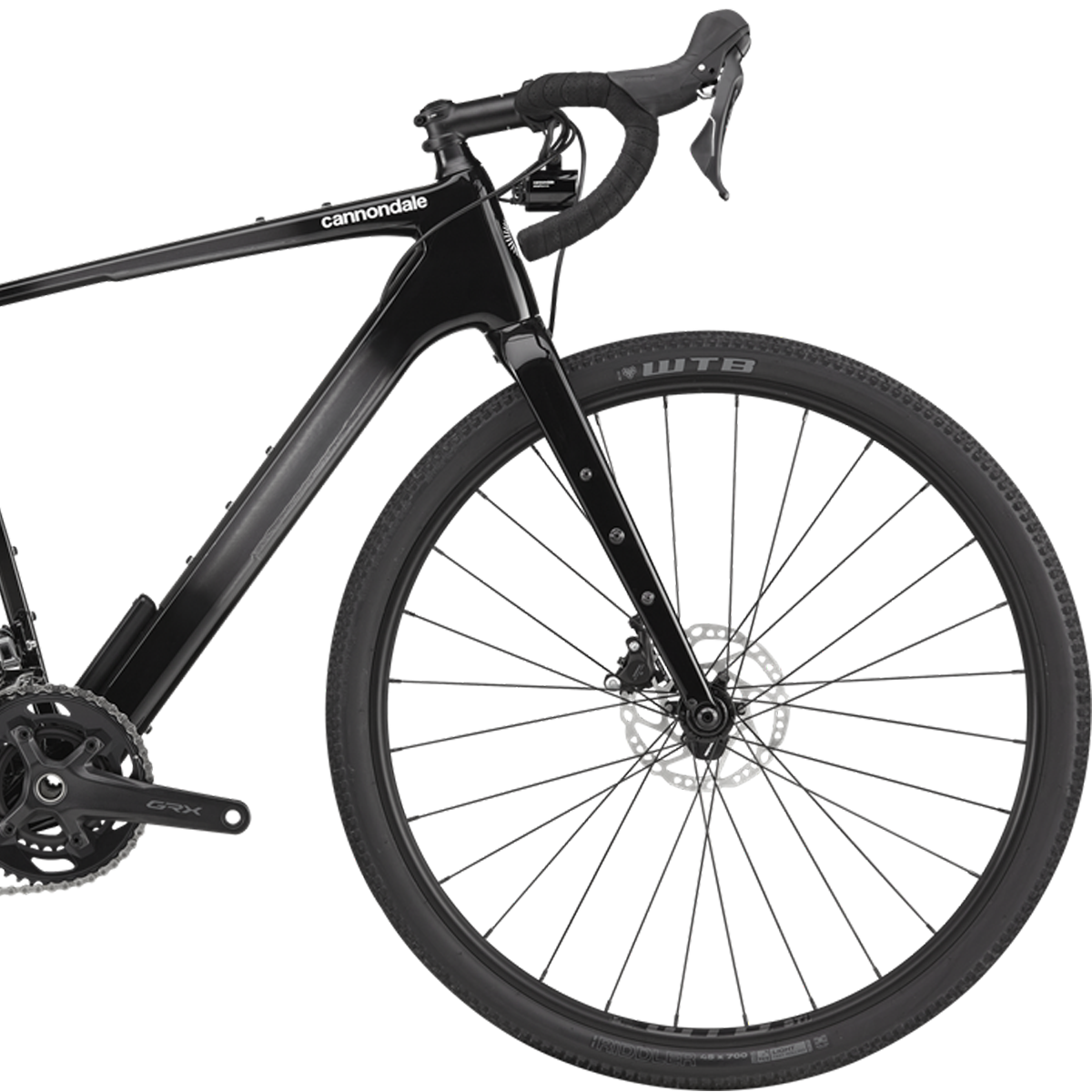

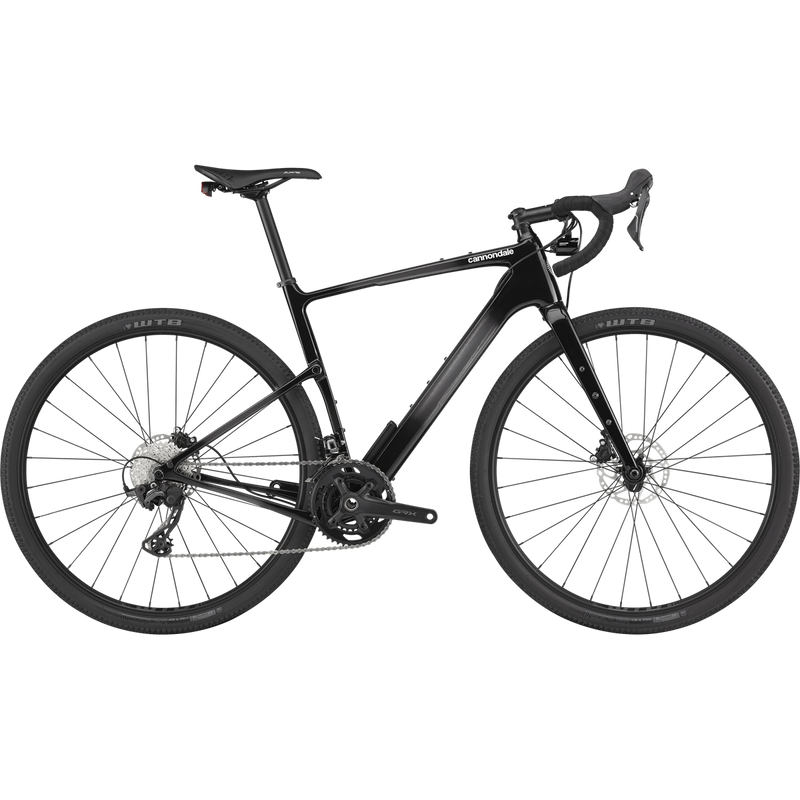

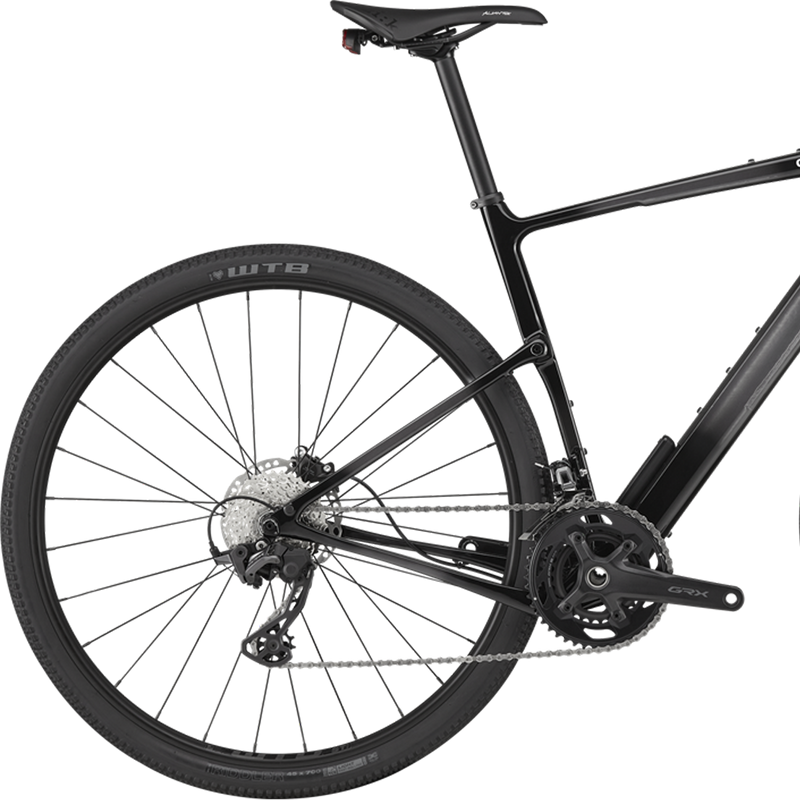

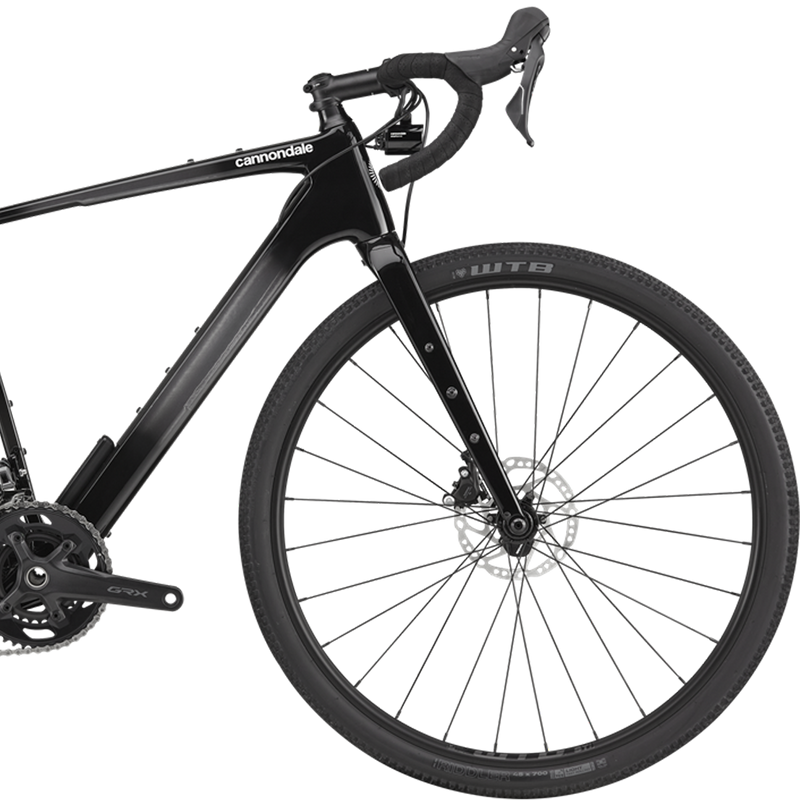

Topstone Carbon 3 L 700c

Minimum quantity	Discount
Buy 2 +	Get 10% discount

Minimum quantity

Discount

Buy 2 +

Get 10% discount

RIDER HEIGHT	BIKE SIZE
4'10" - 5'5"	XS
5'3" - 5'9"	S
5'7" - 6'1"	M
5'10" - 6'4"	L
6' - 6'8"	XL

Brakes: Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
Crank: Shimano GRX 610, 46/30
Drivetrain: Shimano GRX 820, Shadow RD+/Shimano HG M7100, 12-speed
Frame: Carbon
Wheels: WTB Riddler TCS Light, 700x45c

The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits. Where it thrives: Gravel and Dirt Roads, Rough Pavement, Trails What it's built for: Gravel riding,

The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.

Where it thrives: Gravel and Dirt Roads, Rough Pavement, Trails
What it's built for: Gravel riding, back road exploring, bike packing and off-road adventures
Lightweight Topstone Carbon frameset with Kingpin suspension, SmartSense equipped
Shimano GRX 820 12-speed gravel group
WTB Riddler TCS Light, 700x45c, tubeless ready

Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.

Returns & Price Matching

We Want you to

Lve your purchase

Love the price

We'll price-match if you find a better deal

Love it now

If you find it for less within 1 month we'll give you a gift card for the difference

Don't love it? Bring it Back

If at any time you don't love your purchase, bring it back for a refund, credit or repair

Component	Part
FRAME	Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
FORK	Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
HEADSET	Integrated, 1-1/8" - 1.5"
REAR DERAILLEUR	Shimano GRX 820, Shadow RD+
FRONT DERAILLEUR	Shimano GRX 820, braze-on
SHIFTERS	Shimano GRX 600, 12-speed
CHAIN	Shimano HG M7100, 12-speed

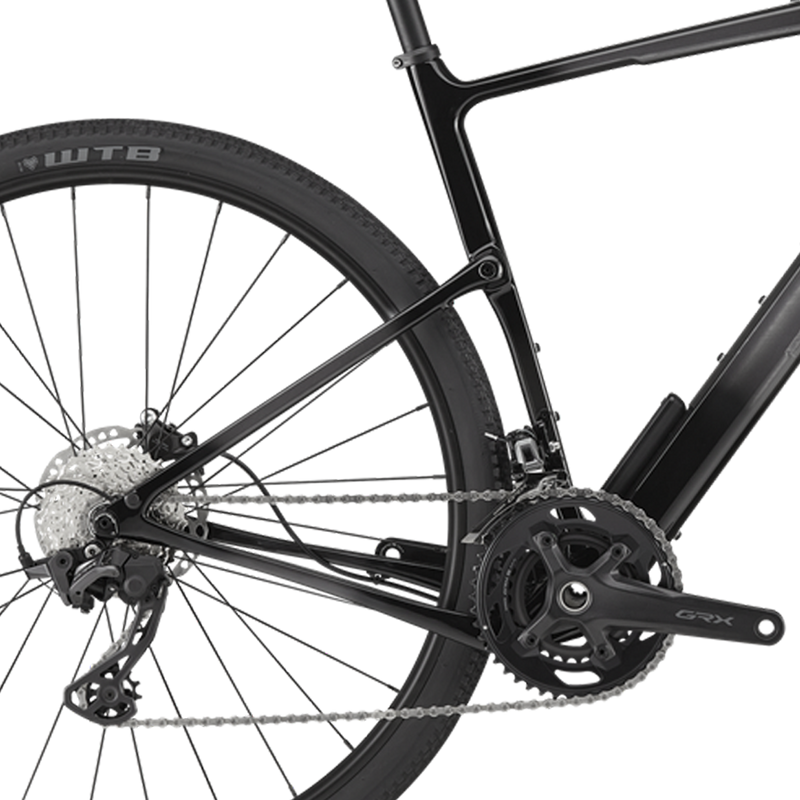

CRANK	Shimano GRX 610, 46/30
REAR COGS	Shimano HG R7100, 11-34, 12-speed
BOTTOM BRACKET	Shimano BSA 68
BRAKES	Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
RIMS	WTB ST i23 TCS, 700c, 28h, tubeless ready
SPOKES	Stainless Steel, 14g
TIRES	WTB Riddler TCS Light, 700x45c, tubeless ready
HUBS	(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
FRONT TIRE	WTB Riddler TCS Light, 700x45c, tubeless ready
REAR TIRE	WTB Riddler TCS Light, 700x45c, tubeless ready
HANDLEBAR	Cannondale 3, butted 6061 Alloy, 16 deg flare drop
STEM	Cannondale 3, 6061 Alloy, 31.8, 7°
GRIPS	Fizik Solocush Soft, 3mm
SADDLE	Fizik Solocush Soft, 3mm
SEATPOST	Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm
EXTRA(S)	SmartSense with Lights

* Specs subject to change

		XS	SM	MD	LG	XL
A	SEAT TUBE LENGTH (CM)	41	45.8	50.5	55.3	59
B	TOP TUBE HORIZONTAL (CM)	53.3	54.4	55.7	57.2	58.7
C	TOP TUBE ACTUAL (CM)	50.3	51.6	53.2	55	56.7
D	HEAD TUBE ANGLE	70.0°	71.2°	71.2°	71.2°	71.2°
E	SEAT TUBE ANGLE EFFECTIVE	73.1°	73.1°	73.1°	73.1°	73.1°
E	SEAT TUBE ANGLE ACTUAL	71.4°	71.6°	71.8°	71.9°	72.1°
F	STANDOVER (CM)	70.4	74.5	78.5	82.3	85.7
G	HEAD TUBE LENGTH (CM)	10.5	12.3	15	17.7	20.5
H	WHEELBASE (CM)	10.1	101.3	102.9	104.4	106.1
I	FRONT CENTER (CM)	60.1	60.3	61.7	63.3	64.9
J	CHAIN STAY LENGTH (CM)	42	42	42	42	42
K	BOTTOM BRACKET DROP (CM)	74	69	67	67	64
L	BOTTOM BRACKET HEIGHT (CM)	27.8	28.3	28.5	28.5	28.8
M	FORK RAKE (CM)	55	55	55	55	55
N	TRAIL (CM)	69	62	62	62	62
O	STACK (CM)	53.4	55.1	57.4	60	62.4
P	REACH (CM)	37.1	37.7	38.3	39	39.7

Color Carbon

Size S Size Chart
