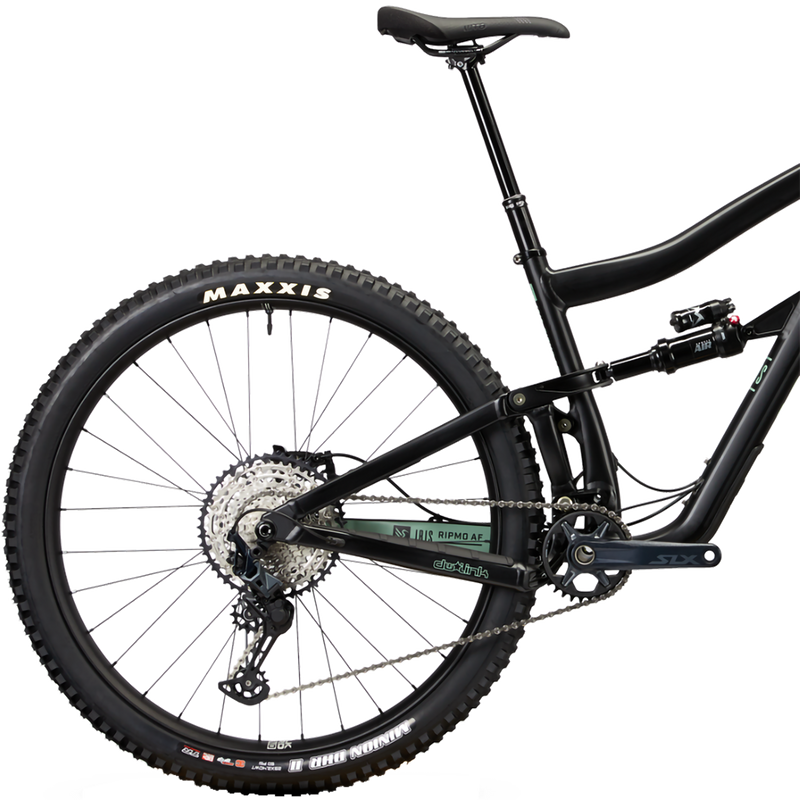

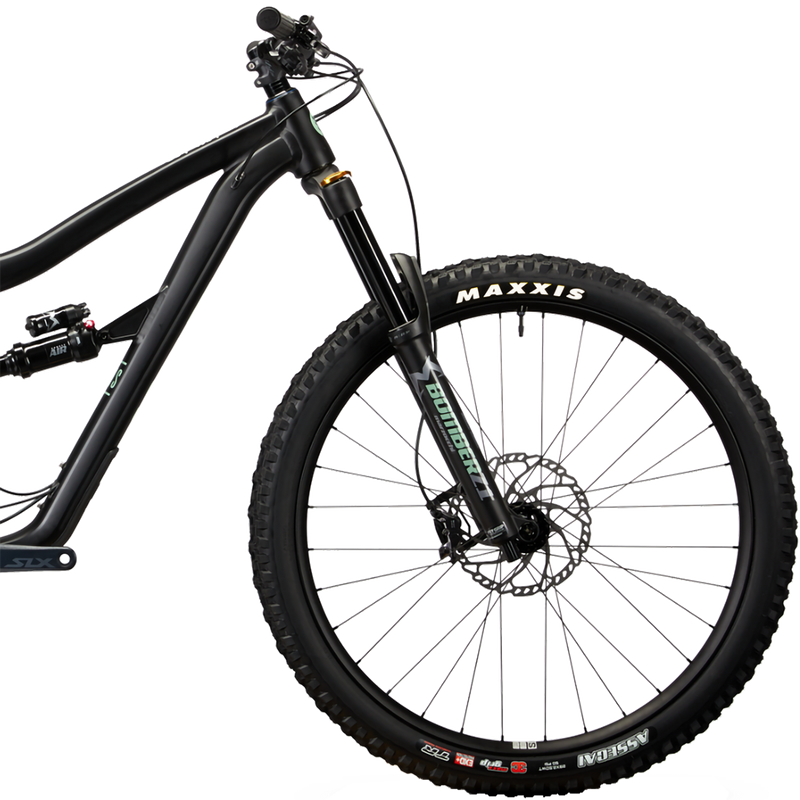

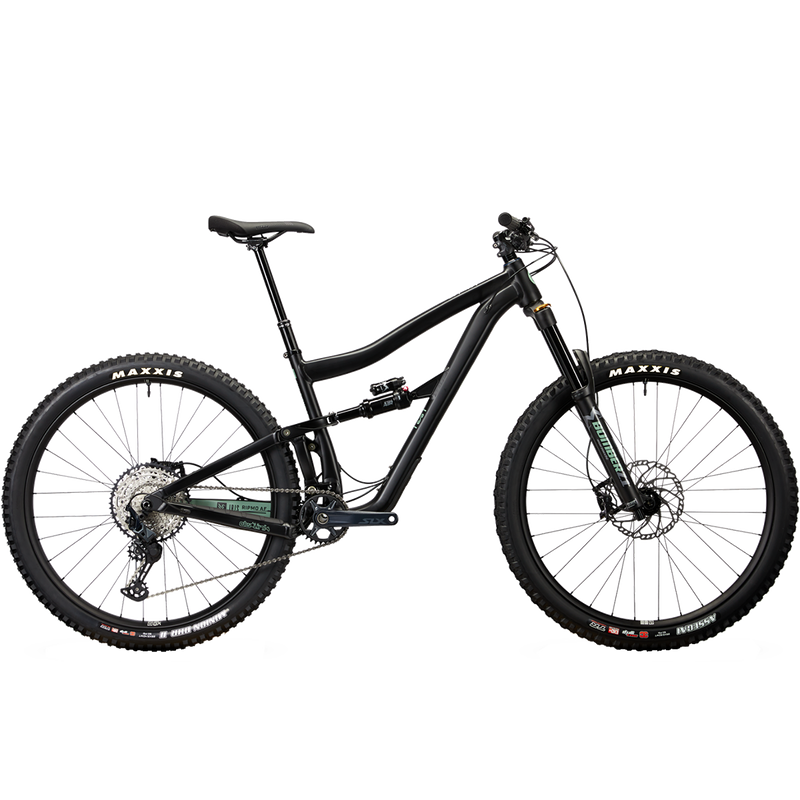

Ripmo AF Bomber Air Deore

Minimum quantity	Discount
Buy 2 +	Get 10% discount

Minimum quantity

Discount

Buy 2 +

Get 10% discount

RIDER HEIGHT	BIKE SIZE
5'0" - 5'4"	S
5'3" - 5'8"	M
5'7" - 6'1"	L
6' - 6'5"	XL

Drivetrain: Shimano Deore
Dropper Post: KS Rage-i Dropper 31.6mm
Fork: Marzocchi Bomber Z1
Frame: Aluminum
Tire Size: Front 29" x 2.5" / Rear 29" x 2.4"

The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks. Durable, affordable aluminum alloy UDH derailleur for maximum f

The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks.

Durable, affordable aluminum alloy
UDH derailleur for maximum future compatibility and moves to a 55mm chain line
Modern geometry with a steep 76-degree seat tube angle
dw-link suspension platform
Compatible with both coil and air shocks
2.6" Tire Clearance
Ultra low standovers give you the ability to size your frame based on reach and preference
Designed to accommodate the longest dropper posts possible
Removable ISCG 05 mount

Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.

Returns & Price Matching

We Want you to

Lve your purchase

Love the price

We'll price-match if you find a better deal

Love it now

If you find it for less within 1 month we'll give you a gift card for the difference

Don't love it? Bring it Back

If at any time you don't love your purchase, bring it back for a refund, credit or repair

Component	Part
Fork	Marzocchi Bomber Z1, 160mm, 29", 110x15mm, Medium spring installed
Shock	Marzocchi Bomber Air, 210 x 55
Wheels	Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires (F/R)	Maxxis Assegai 29" x 2.5" EXO+ casing, 120tpi / Maxxis DHR II 29" x 2.4" EXO+ casing, 60tpi
Brakes	Shimano Deore, M6120, 4-Piston
Rotors (F/R)	Shimano SM-RT66, 203mm/180mm
Crankset	Shimano Deore M6100, 24mm Spindle, 30T
Bottom Bracket	Shimano SM BB52
Rear Derailleur	Shimano Deore, M6100, Shadow Plus
Shifter	Shimano Deore, M6100
Cassette	Shimano Deore, M6100, 10-51T
Chain	KMC X12 Silver Chain
Headset	Cane Creek 40 ZS44/ZS56
Grips	Lizard Skin Charger
Handlebar	Ibis Aluminum, 780mm
Stem	Ibis 31.8mm, S-M: 40mm, L-XL: 50mm
Seatpost	KS Rage-i Dropper 31.6mm, S: 125mm, M: 150mm, L/XL: 170mm
Saddle	WTB Silverado, 142mm

* Specs subject to change

		S	M	L	XL
Seat Tube Length (mm/in)	A	368 / 14.5	380 / 15	432 / 17	483 / 19
Top Tube Length (mm/in)	B	573 / 22.6	603 / 23.7	632 / 24.9	655 /25.8
Head Tube Length (mm/in)	C	90 / 3.5	100 / 3.9	110 / 4.3	120 / 4.7
Chainstay Length (mm/in)	D	435 / 17.1	435 / 17.1	435 / 17.1	435 / 17.1
Seat Tube Angle	E	77°	76°	76°	76°
Head Tube Angle	F	64.9°	64.9°	64.9°	64.9°
Wheelbase (mm/in)	G	1185 / 46.7	1216 / 47.9	1237 / 48.7	1262 / 49.7
BB Height (mm/in)		341 / 13.4	341 / 13.4	341 / 13.4	341 /13.4
Stack (mm/in)		613 / 24.1	620 / 24.4	629 / 24.8	642 / 25.3
Reach (mm/in)		431 / 17	458 / 18	475 / 18.7	495 / 19.5
Standover (mm/in)		705 / 27.8	750 / 29.5	750 / 29.5	760 / 29.9
Trail (mm/in)		125 / 4.9	125 / 4.9	125 / 4.9	125 / 4.9
BB Drop (mm/in)		30 / 1.2	30 / 1.2	30 / 1.2	30 / 1.2
Saddle height for seat tube angle (mm/in)		650 / 25.6	700 / 27.6	750 / 29.5	810 / 31.9

Color Espresso Black

Size S Size Chart
