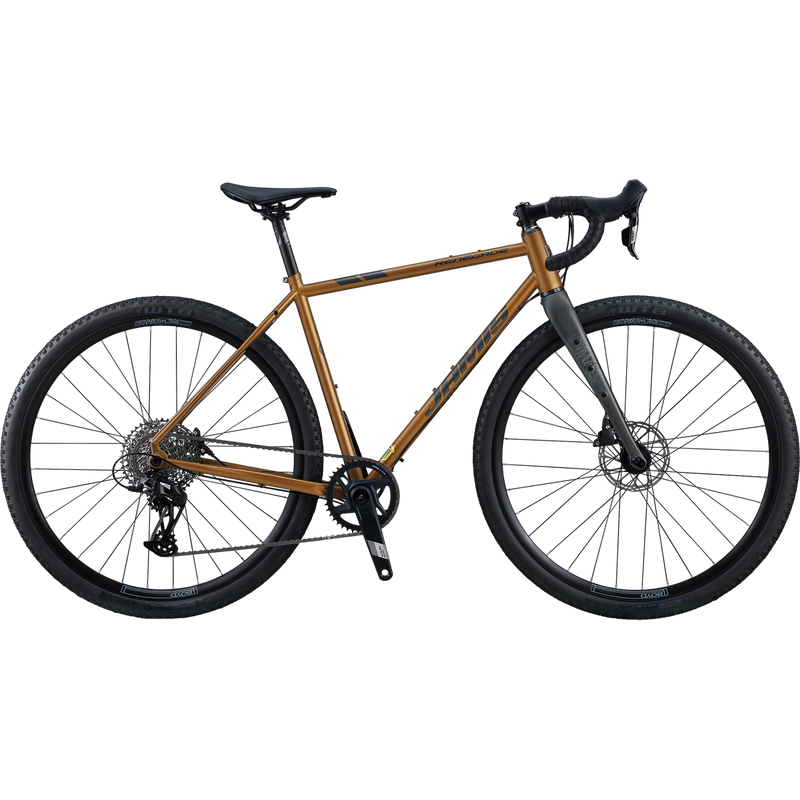

Renegade S2 Apex
Since its inception in 2014 the Jamis Renegade has been defining versatility in modern adventure bikes. It’s not easy improving on something that’s capable of, well, just about everything, but Jamis' Renegade platform is simply exceptional. They’ve s
Since its inception in 2014 the Jamis Renegade has been defining versatility in modern adventure bikes. It’s not easy improving on something that’s capable of, well, just about everything, but Jamis' Renegade platform is simply exceptional. They’ve succeeded in preserving the all-important DNA of their original Renegade while also adding more tire clearance, adjustability, and compliance.
- V2 Size Specific Design frame geometry
- Reynolds 631 double-butted chromoly with UDH hanger
- Renegade V2 Adventure monocoque carbon fiber fork
- 12mm thru axle flip-chip with 50/55mm offset
- Boyd GVL Tubeless 12-speed wheelset
- WTB Raddler 700Cx40C
- SRAM Apex 12-speed group, Apex 40T, 11-44T
- SRAM Apex flat mount hydraulic brakes
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| FRAME | Renegade Size Specific Design frame geometry, Reynolds 631 double-butted chromoly main tubes, tapered head tube for tapered fork, oval seat stays, Di2 compatible, threaded T47 BB shell, 12×142 Jamis MTS (Modular Thru- axle System), flat mount disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets. |
| FORK | Renegade V2 monocoque carbon composite fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5" hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets |
| HEADSET | FSA No.57E/42/CUP Internal headset with lower cup, 1.5 - 1 1/8" |
| WHEELS | Boyd GVL Tubeless wheelset, i25, 32/32H, BOYD 6-bolt sealed bearing hubs, Pillar SR14 spokes, HG Driver, Wingnut tubeless valves, front 12mm/rear 12×142 thru-axles with Switch Lever |
| TIRES | WTB RADDLER Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead |
| DERAILLEURS | SRAM APEX |
| SHIFT LEVERS | SRAM APEX HRD, 12-speed |
| CHAIN | SRAM APEX |
| CASSETTE | SRAM PG 1231 XPLR 12-speed, 11-44T |
| CRANKSET | SRAM APEX Wide 40T, 165mm (48), 170mm (51), 172.5mm (54/56), 175mm (58/61) |
| BB SET | SRAM DUB T47 68 Road Wide |
| PEDALS | N/A |
| BRAKESET | SRAM APEX hydraulic disc brakes, Centerlock Centerline 160mm rotors with SRAM APEX HRD levers |
| HANDLEBAR | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61) |
| STEM | Ritchey 4-AXIS Stem 6°x60mm (48-51), 70mm (54-56), 80mm (58/61) |
| TAPE | Velo EVA gel with gel inserts |
| SEAT POST | Jamis carbon fiber micro-adjust, 27.2 x 300mm, 0mm offset with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp |
| SADDLE | Selle Royal SRX Gravel Saddle with relief hole and MG rails |
| WEIGHT | 23 lbs |
* Specs subject to change
