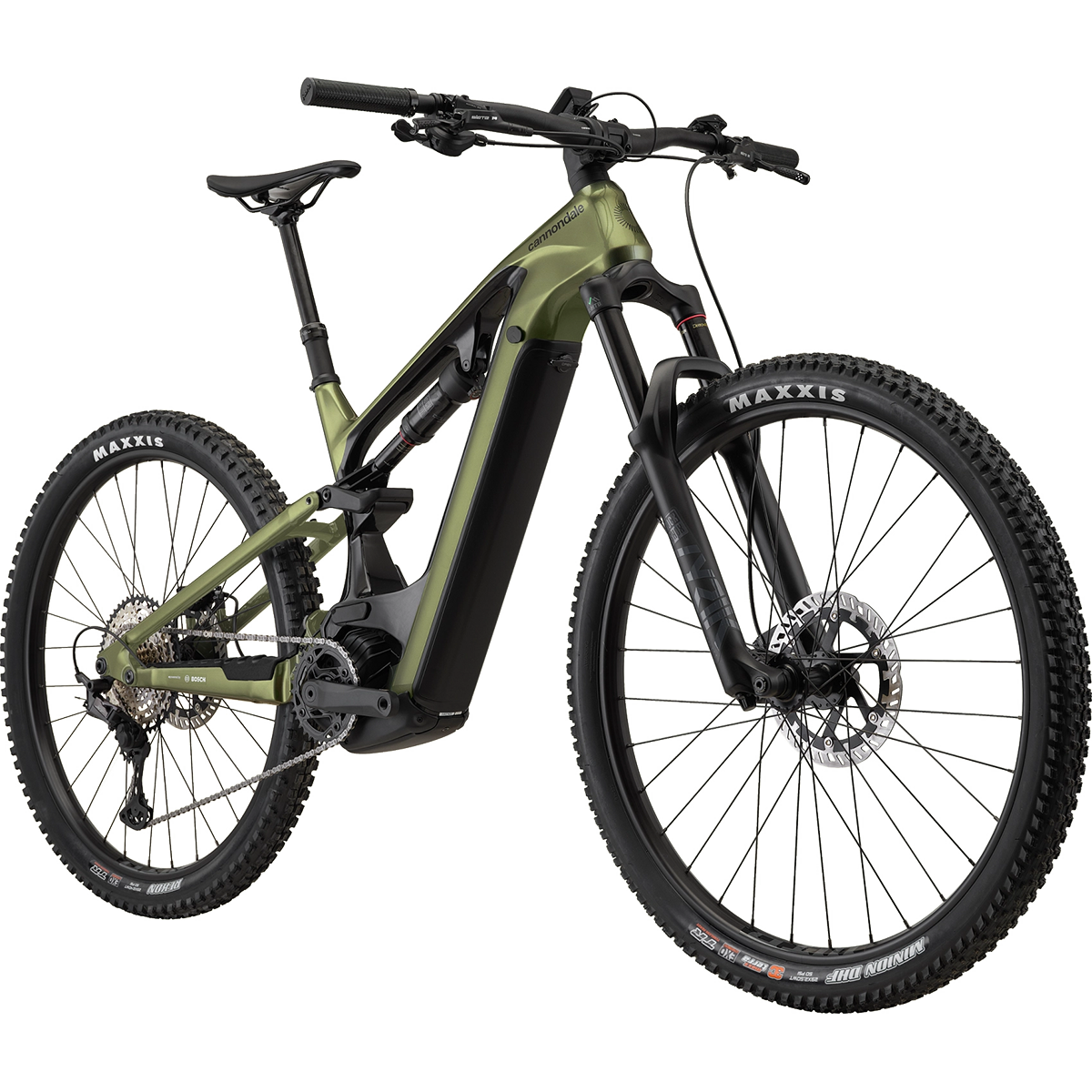

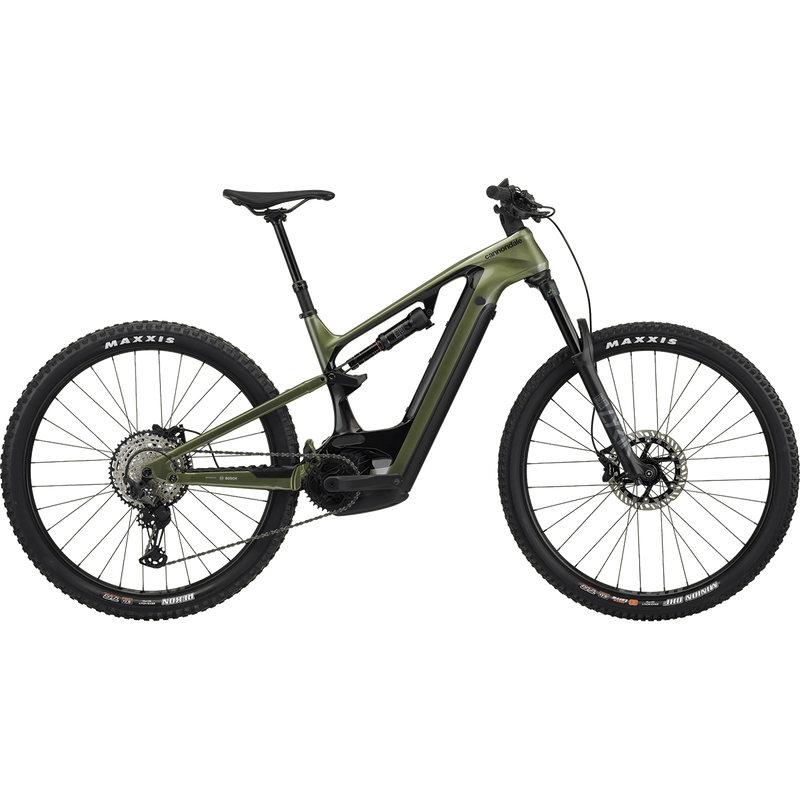

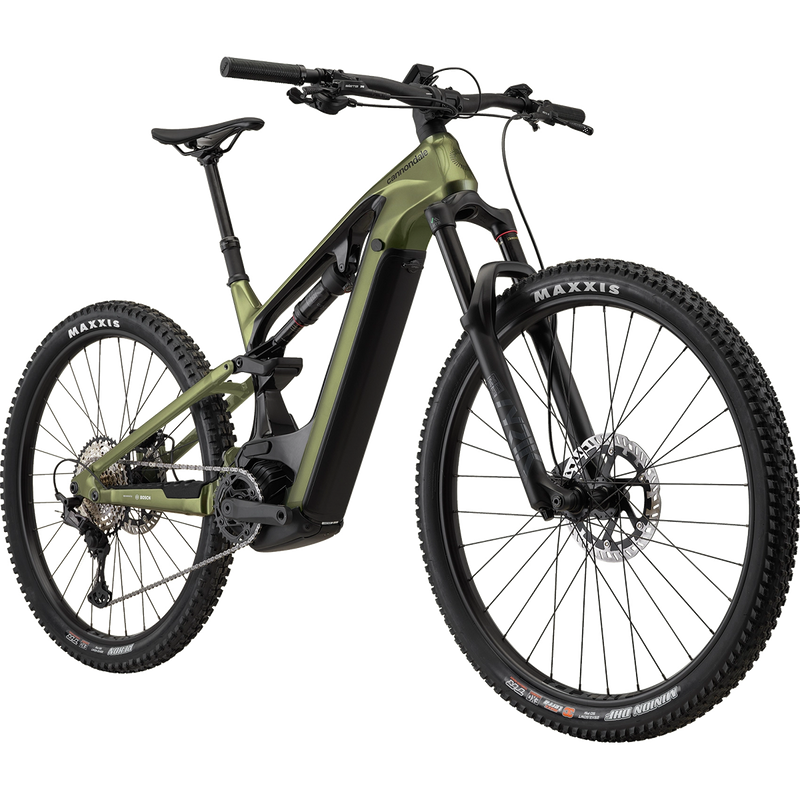

Moterra Neo Carbon 2
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Where it thrives - Challenging trails, Up and down hills, Out in the elements
What
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
- Where it thrives - Challenging trails, Up and down hills, Out in the elements
- What it's built for - Handling, Traction, Efficiency, Durability
- Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
- Bosch SmartSystem - 750wh battery & Performance CX motor
- Shimano XT/SLX 12-speed drivetrain
- Battery Range varies by terrain type and riding style
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|

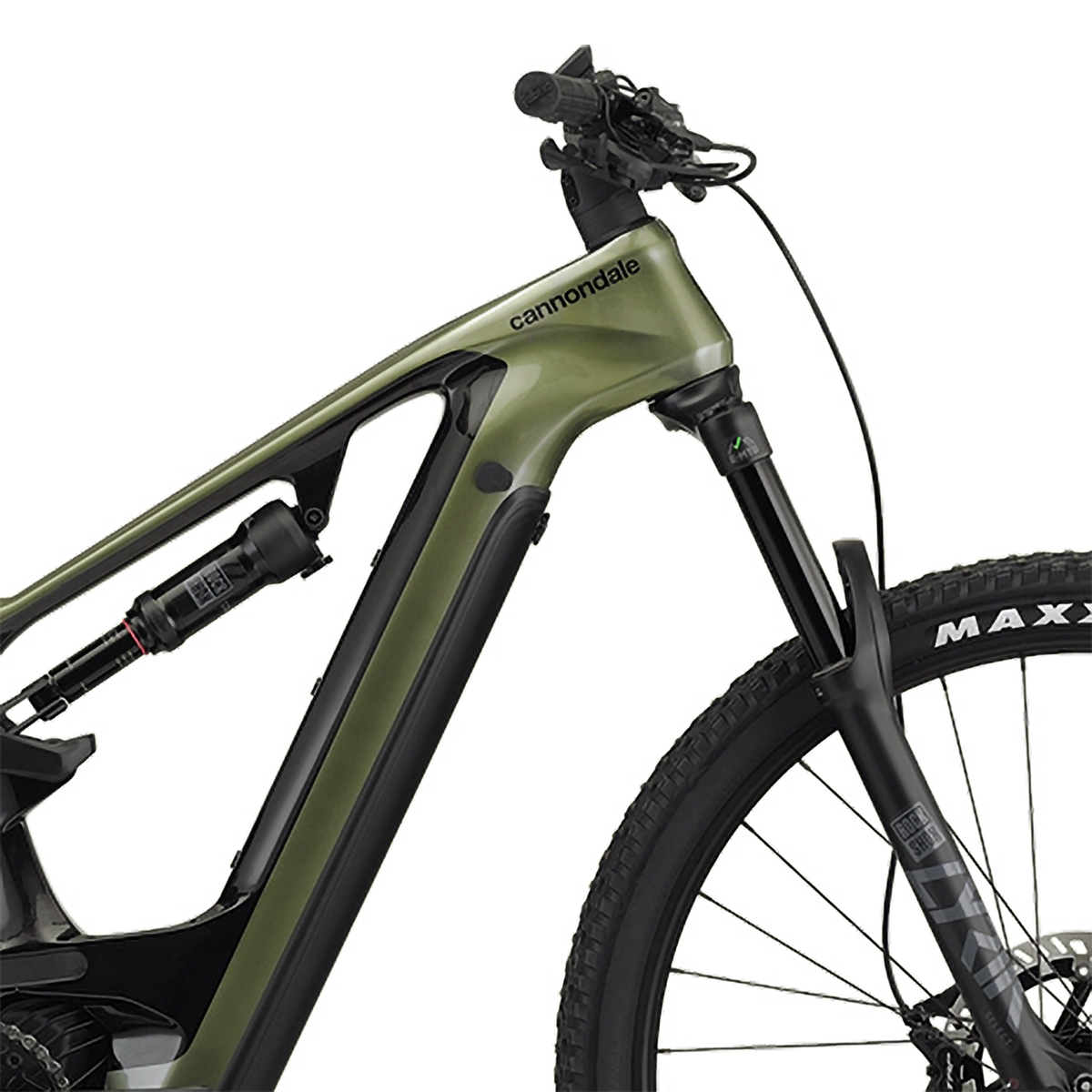

| Frame | Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5" - 1.8" tapered headtube, 18mm two-bolt kickstand mount |

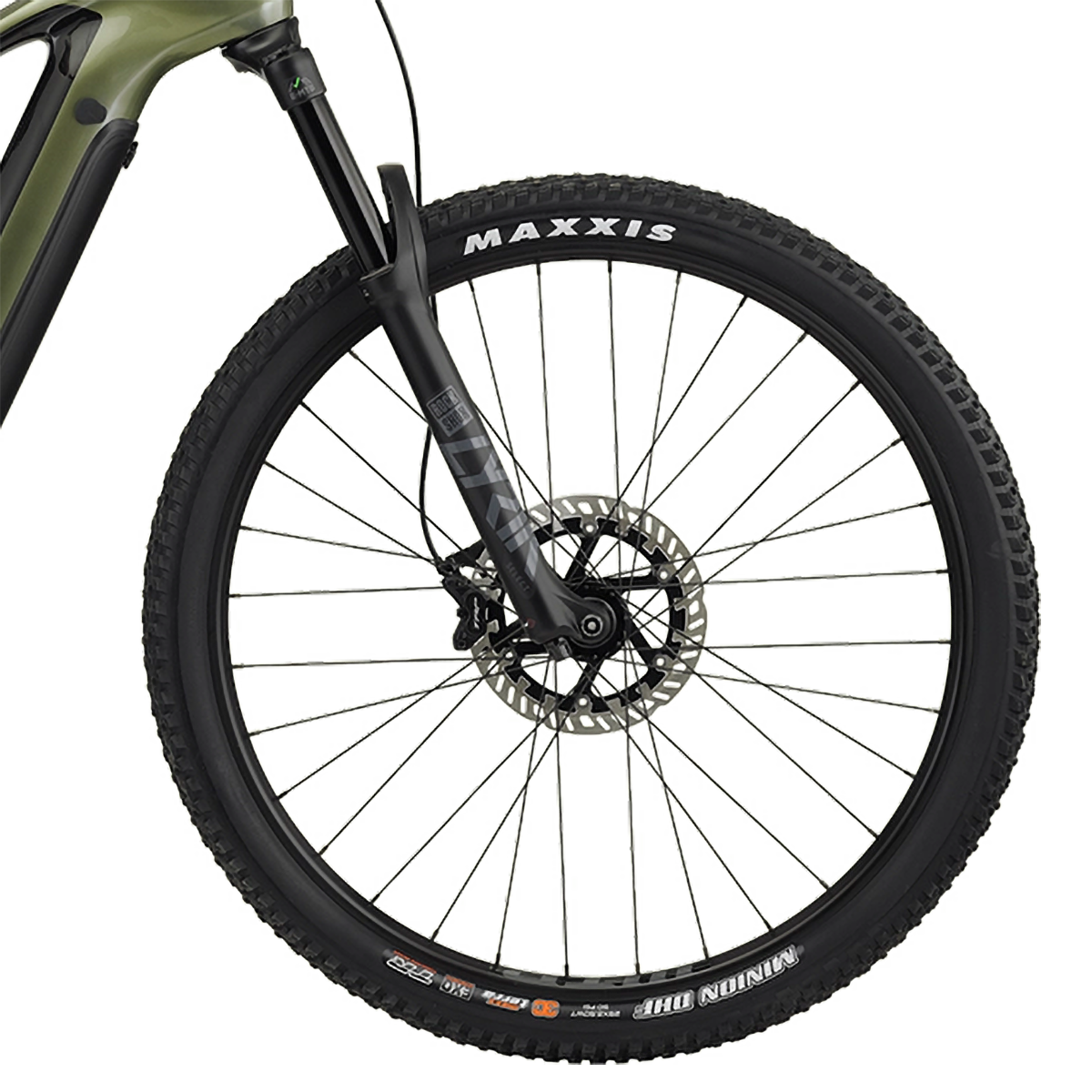

| Fork | RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |
| Headset | Acros integrated sealed bearing, tapered |
| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |

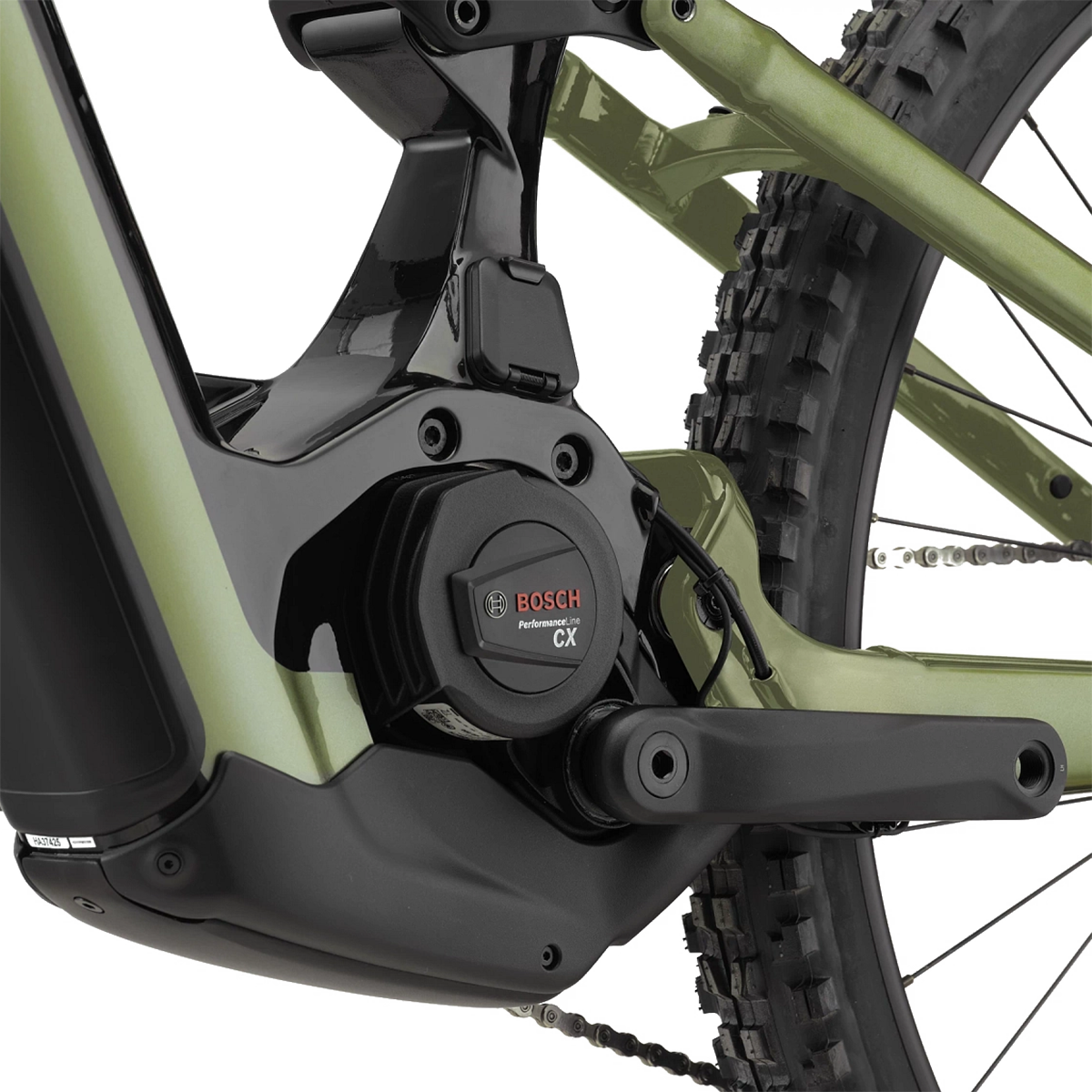

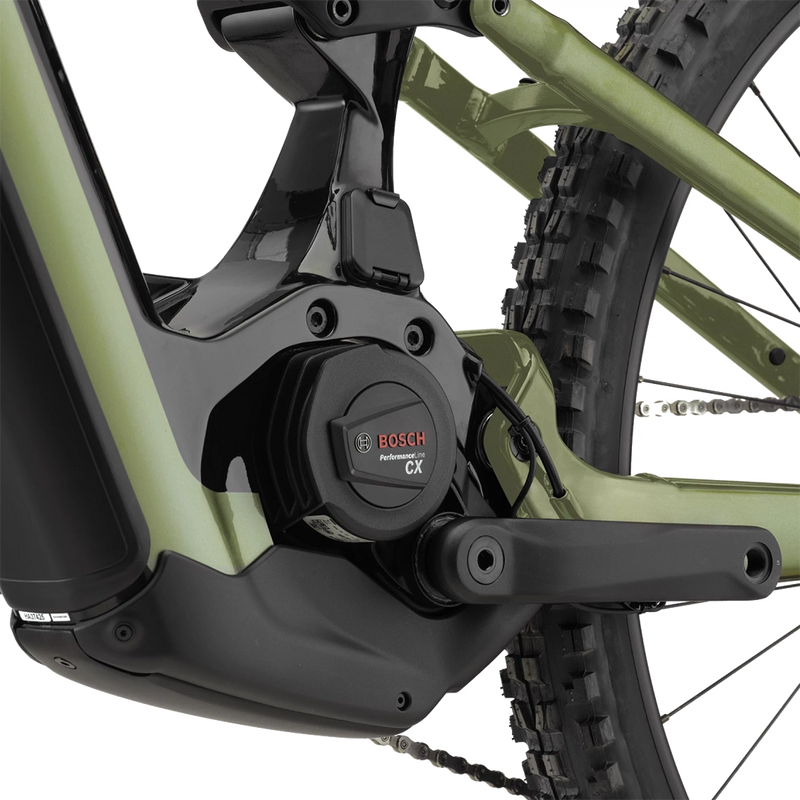

| Drive Unit | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh |
| Charger | Bosch 4A |
| Display | Bosch Kiox 300 w/ LED remote |

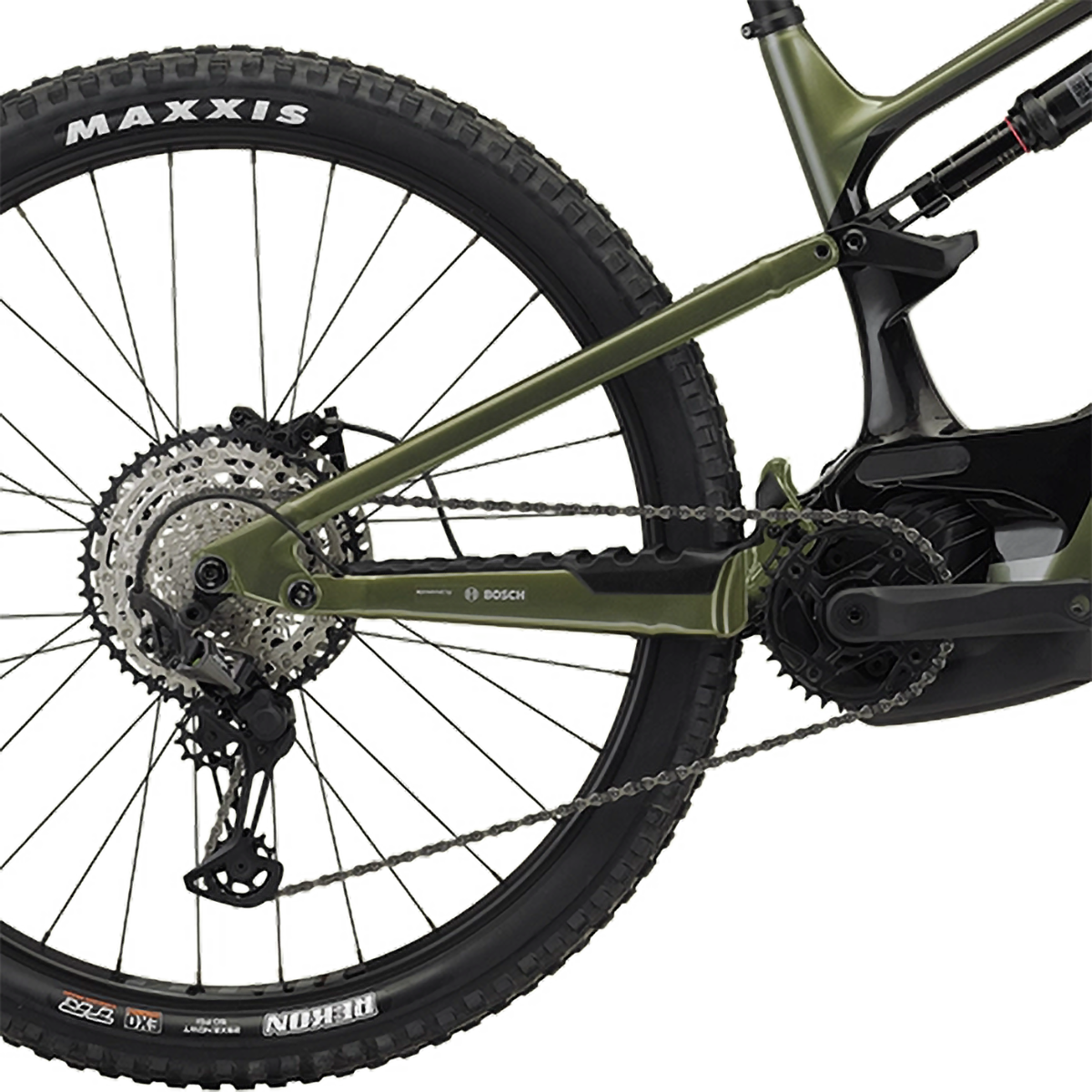

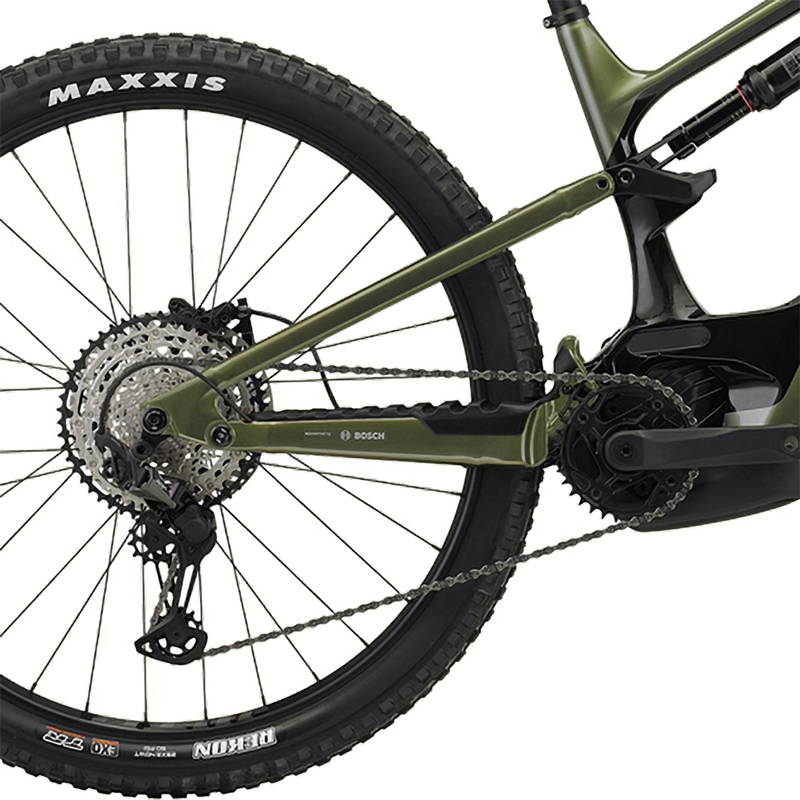

| Rear Derailleur | Shimano XT |
| Shifters | Shimano SLX, 12-speed |
| Chain | Shimano SLX, 12-speed |
| Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Rear Cogs | Shimano SLX, 10-51, 12-speed |
| Brakes | Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors |
| Brake Levers | Shimano MT501 hydraulic disc |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Spokes | DT Swiss Champion |
| Tires | (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
| Tire Size | 2.6 |
| Wheel Size | 29 |
| Hubs | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |

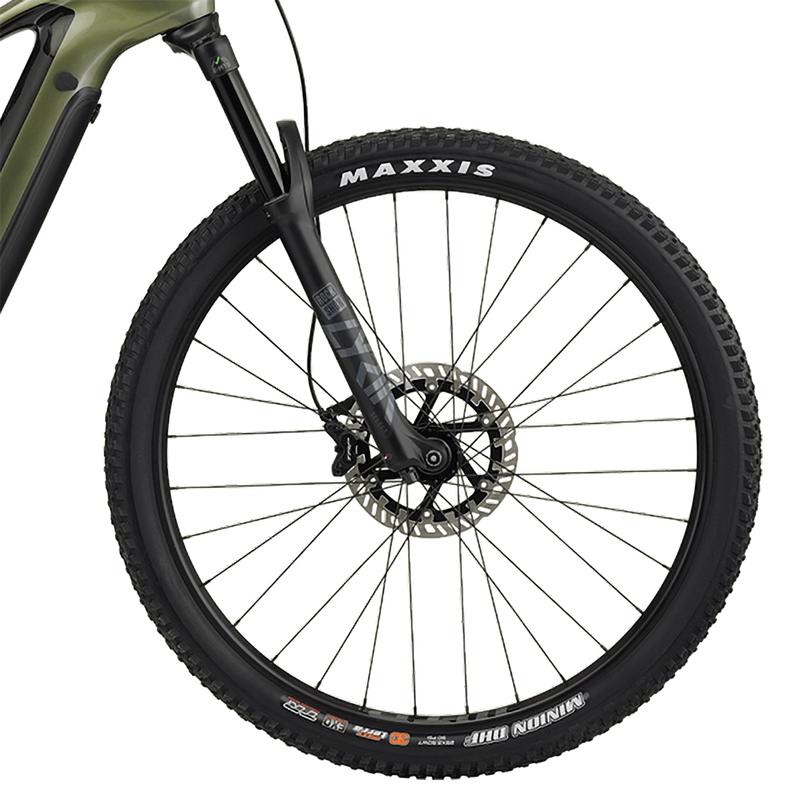

| Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear Tire | Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |

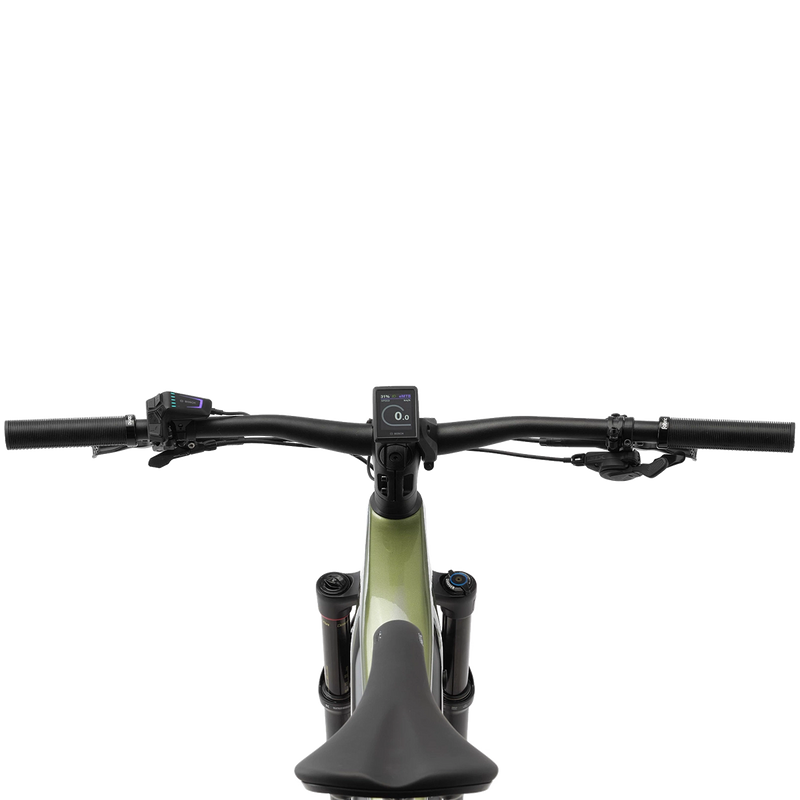

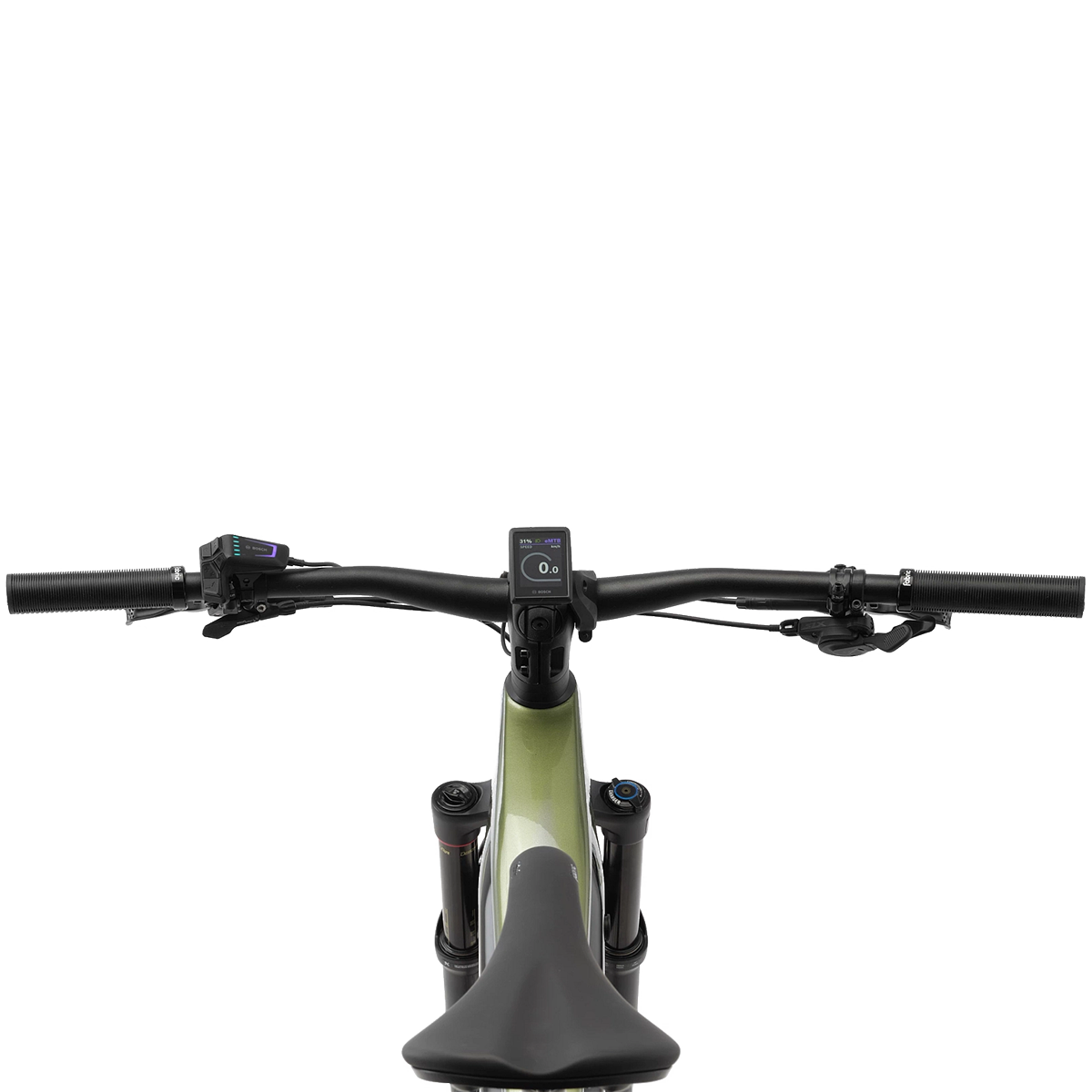

| Handlebar | Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow Sport, steel rails |

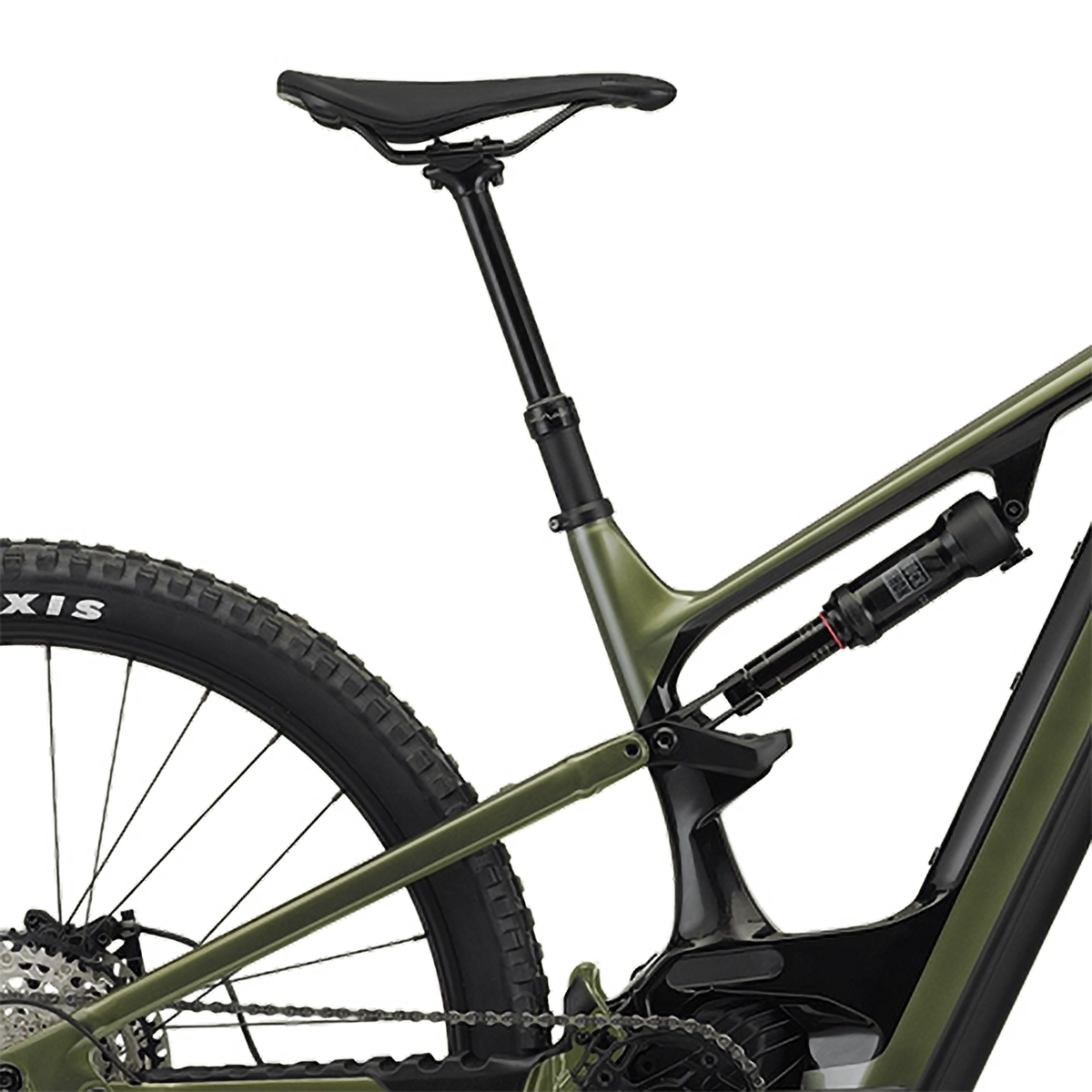

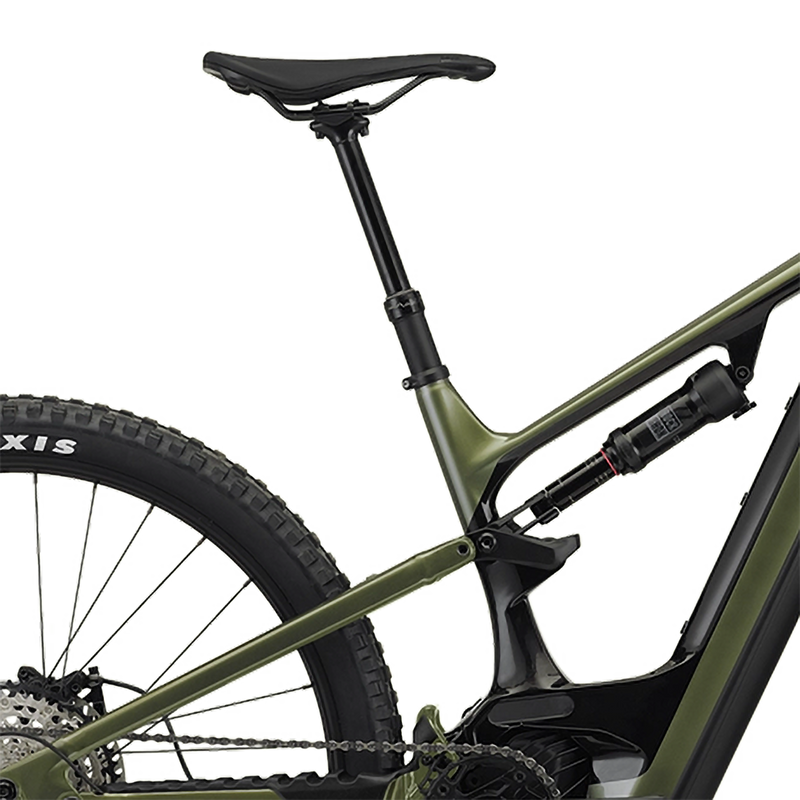

| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
* Specs subject to change
