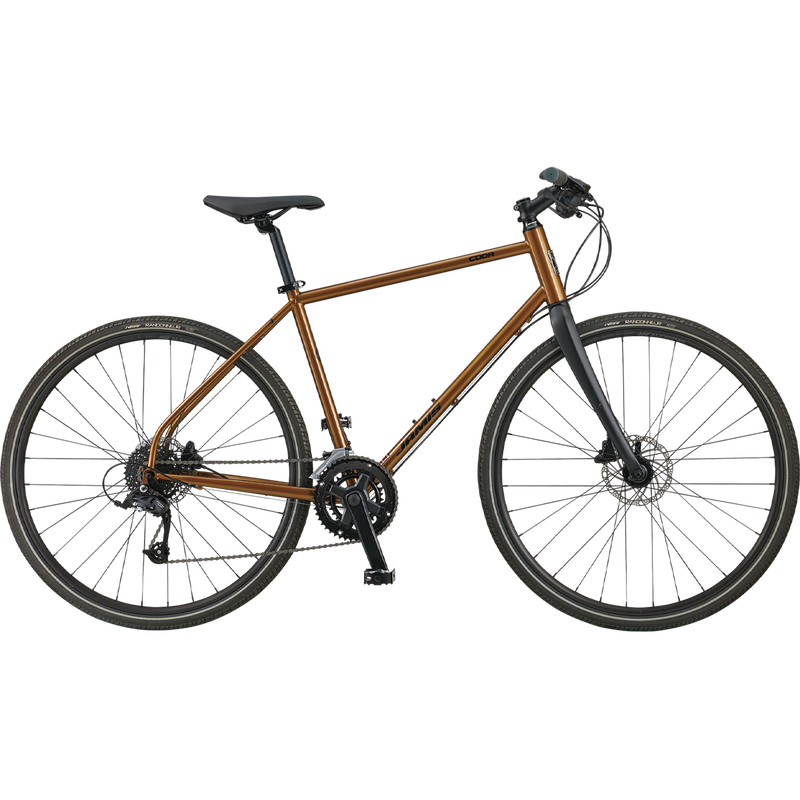

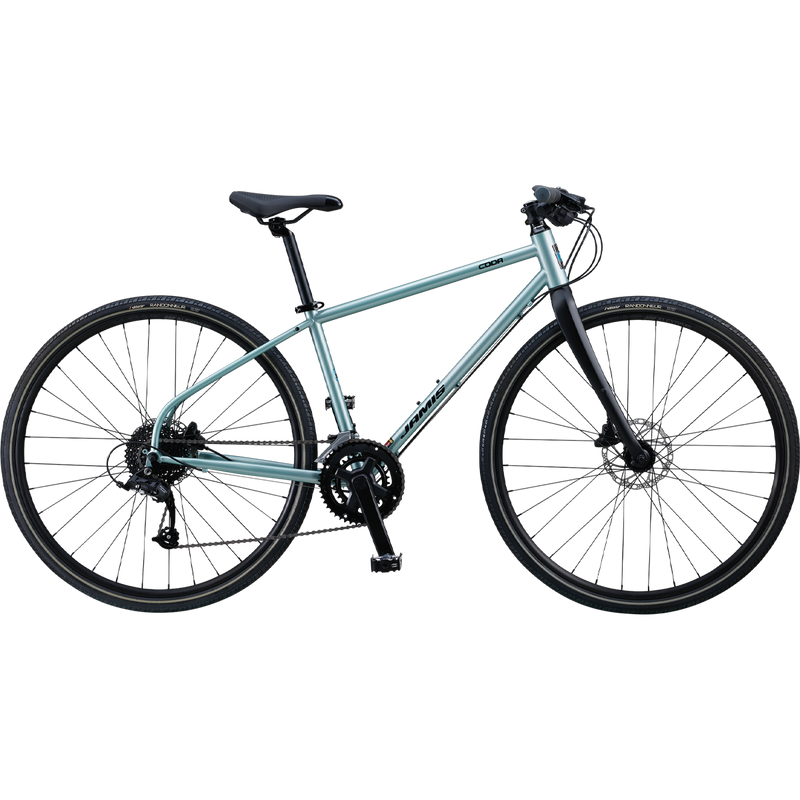

Coda S1 LTD
Codas have been some of Jamis' most popular bikes for decades, and for good reason. There’s the smooth-riding Reynolds chromoly frames, the well-thought-out geometry, the heads-up riding position and the smart component selections, from the super-wid
Codas have been some of Jamis' most popular bikes for decades, and for good reason. There’s the smooth-riding Reynolds chromoly frames, the well-thought-out geometry, the heads-up riding position and the smart component selections, from the super-wide gearing range to the easy-adjust stems: these bikes are simply some of the best and most versatile around.
- Size Specific Design Reynolds 520 double-butted chromoly
- Jamis full carbon composite with carbon steerer
- Alex MD19 double wall disc specific tubeless compatible alloy rims
- microShift Marvo 18-speed Shifters
- Sunrace 11-34T Crankset
- Shimano Acera RD-T3000 front and microShift RD-M46L rear derailleur
- Tektro HD-M280/281 hydraulic Flat Mount disc brakes
- Selle Royal Vivo ERGO saddle
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| COMPONENT | PART |
|---|---|
| Frame | Size Specific Design Reynolds 520 double-butted chromoly main tubes, 48mm extended head tube with reinforced collars, double tapered cromo stays with flat mount disc brake, kickstand mount, forged dropouts and fender/rack eyelets |
| Fork | Jamis full carbon composite with carbon steerer, Flat mount disc brake, low-rider carrier mounts and carbon drop out with stainless steel tabs and fender eyelets |
| Headset | Threadless internal, 1 1/8" |
| Wheels | Alex MD19 double wall disc specific tubeless compatible alloy rims, 32H, Formula hubs with WR and 14g stainless steel spokes |
| Tires | Vittoria Randonneur with reflective sidewalls, 700 x 40c |
| Derailleurs | Shimano Acera RD-T3000 front and microShift RD-M46L rear derailleur |
| Shift levers | microShift Marvo SL-M859, 18-speed |
| Chain | KMC Z9 |
| Cassette | Sunrace CSM90 , 9-speed, 11-34T |
| Crankset | ProWheel TG-CY10 2-PC crank, 46/30, 170mm (15-19"), 175mm (21-23") |
| BB Set | FSA sealed cartridge, 68 x 110.5mm |
| Pedals | Full alloy platform, toe clip attachable |
| Brakeset | Tektro HD-M280/281 hydraulic Flat Mount disc brakes with 160mm rotors and Tektro brake levers. 15-17″ M281 (83mm reach); 19-23″ M280 (88mm reach) |
| Handlebar | Jamis Flat bar, 6061 T-6 aluminum, 25.4 x 10˚ sweep x 600mm (15-17″) 620mm (19-23″) |
| Stem | Jamis Road 3D forged alloy, 25.4 x 17˚ x 90mm (15-17"), 110mm (19-23") |
| Grips | New Anatomic double density kraton grip with end plug |
| Seat Post | Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin |
| Saddle | Selle Royal Vivo ERGO |
| Weight | 26.5 lbs |
* Specs subject to change
