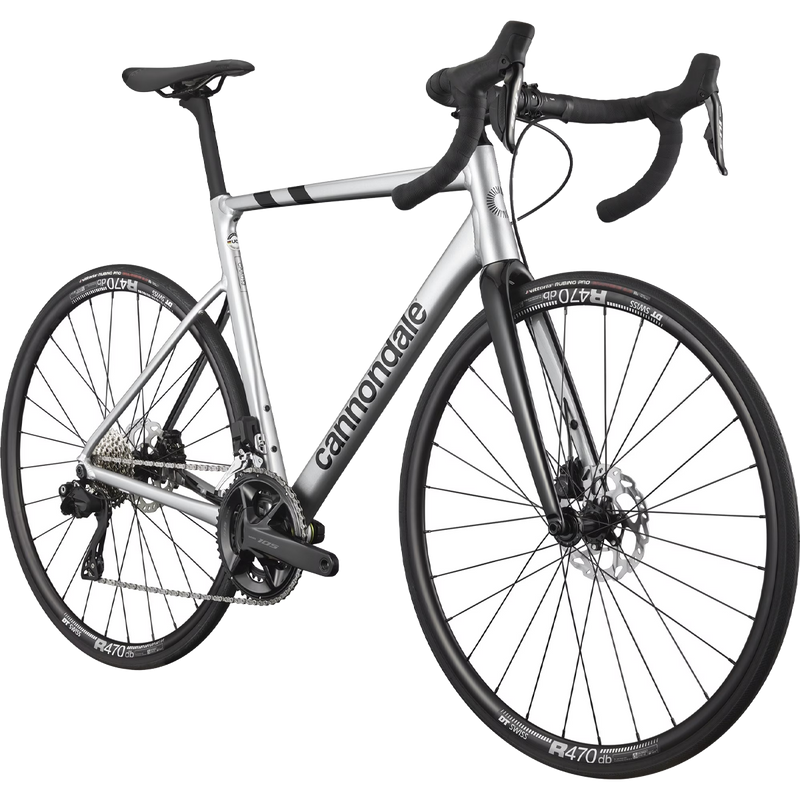

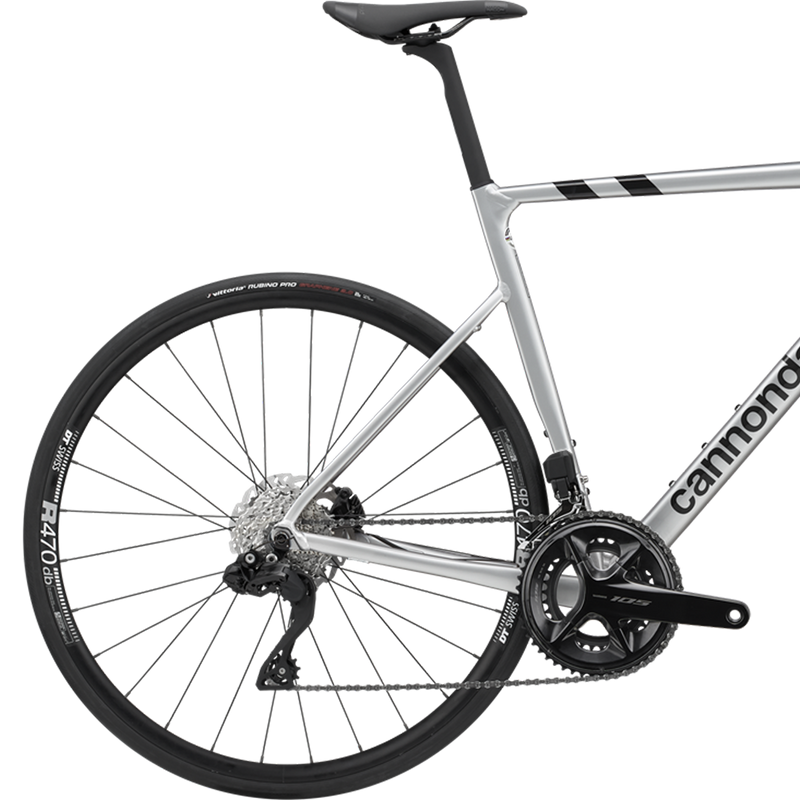

CAAD13 105 Di2

Minimum quantity	Discount
Buy 2 +	Get 10% discount

Minimum quantity

Discount

Buy 2 +

Get 10% discount

RIDER HEIGHT	BIKE SIZE
5'2" - 5'5"	44
5'3 - 5'7"	48
5'5" - 5'9"	51
5'7" - 5'11"	54
5'10" - 6'1"	56
6'0" - 6'4"	58
6'2" - 6'6"	60
6'5" - 6'9"	62

Brakes: Shimano 105 7170 hydraulic disc
Crank: Shimano 105 7100
Drivetrain: Shimano 105 Di2 7150
Frame: Alloy
Wheels: 700x25c

Make Your Own Luck. This is the speediest, smoothest, best handling, finest performing aluminum race bike on the planet. Where it thrives: In competition, the open road What it's built for: Speed, agility, handling Ultralight SmartForm C1 Premium Al

Make Your Own Luck. This is the speediest, smoothest, best handling, finest performing aluminum race bike on the planet.

Where it thrives: In competition, the open road
What it's built for: Speed, agility, handling
Ultralight SmartForm C1 Premium Alloy Frame w/ full carbon fork
Shimano 105 Di2 electronic shifting & hydraulic disc brakes
HollowGram 27 SL carbon seatpost / DT Swiss R470 wheels

Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.

Returns & Price Matching

We Want you to

Lve your purchase

Love the price

We'll price-match if you find a better deal

Love it now

If you find it for less within 1 month we'll give you a gift card for the difference

Don't love it? Bring it Back

If at any time you don't love your purchase, bring it back for a refund, credit or repair

Component	Part
FRAME	SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready
FORK	CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm) 45mm offset (56-62cm)
HEADSET	CAAD13, integrated, 1-1/8" - 1-1/4

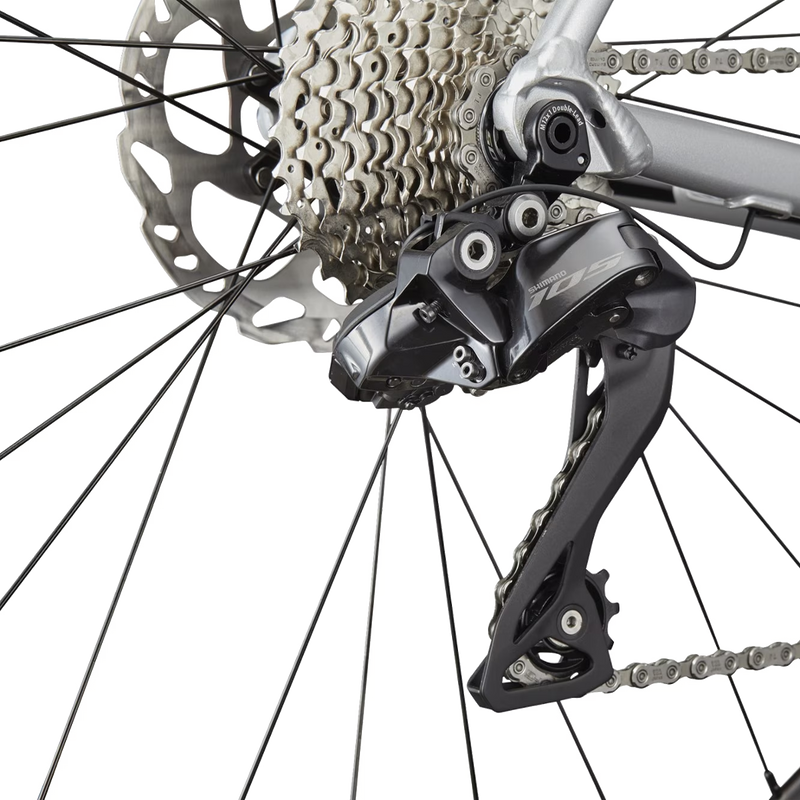

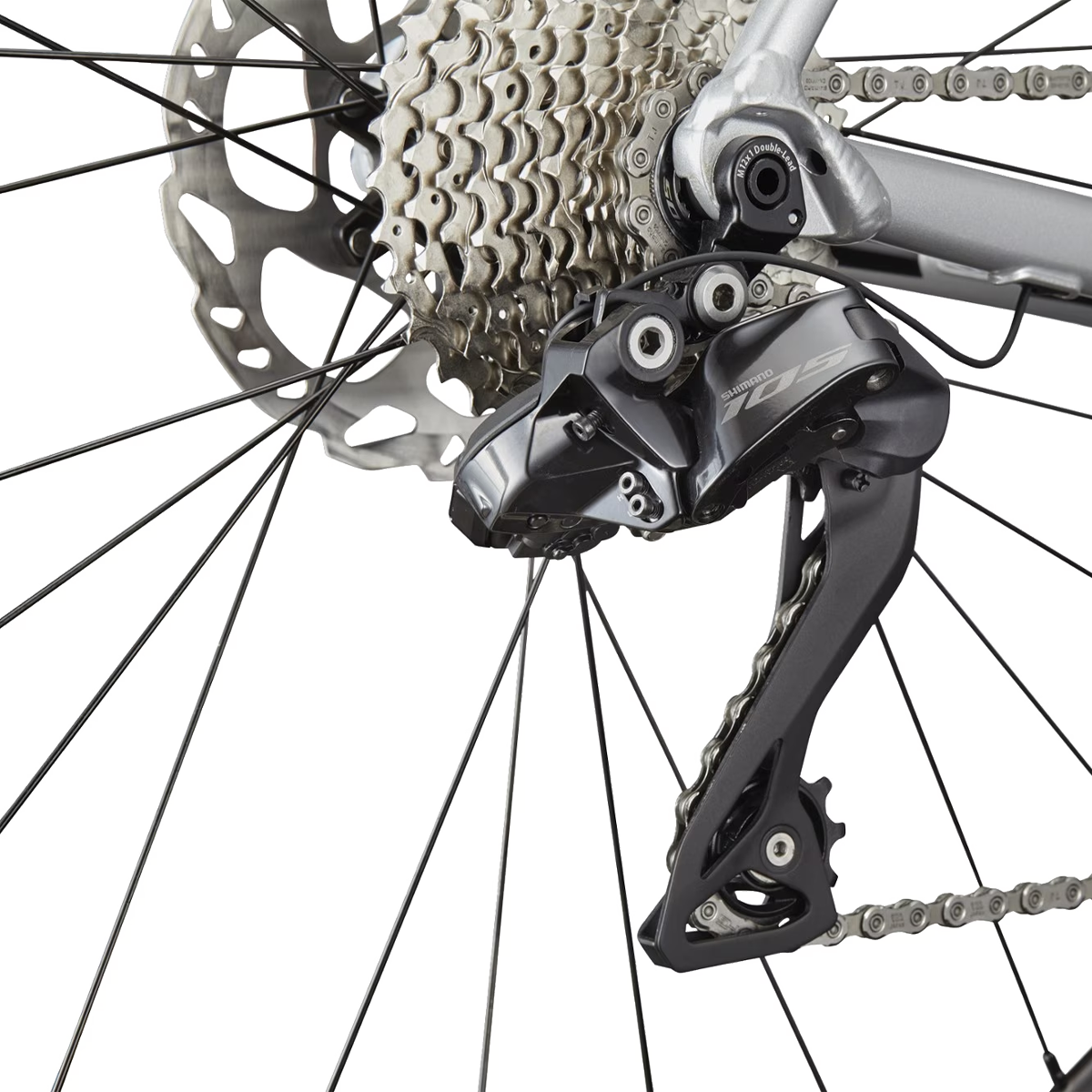

DERAILLEUR, REAR	Shimano 105 Di2 7150
DERAILLEUR, FRONT	Shimano 105 Di2 7150, braze-on
SHIFTERS	Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
CHAIN	Shimano 105 7100, 12-speed

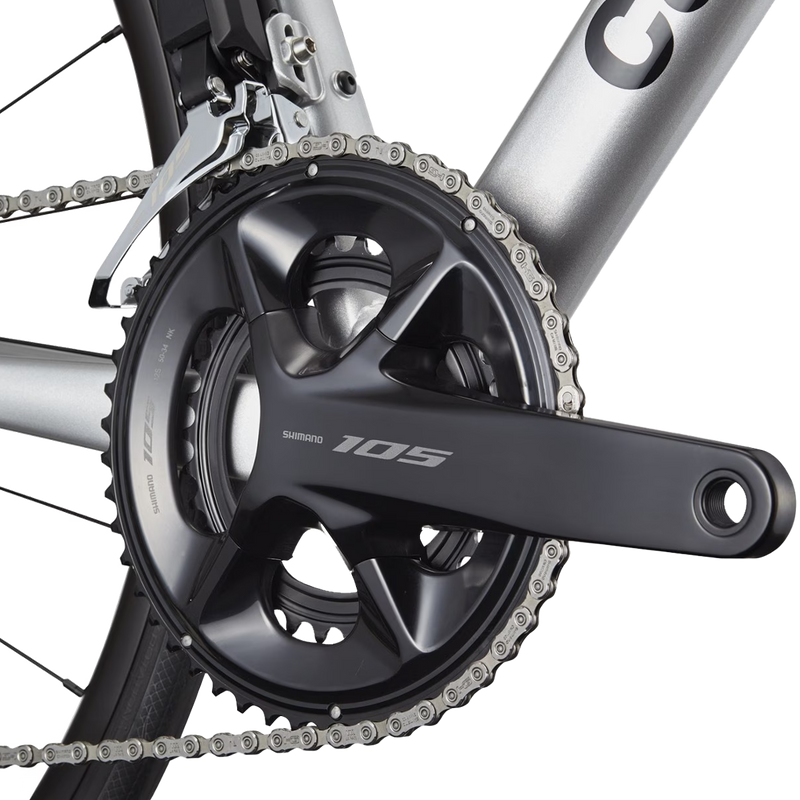

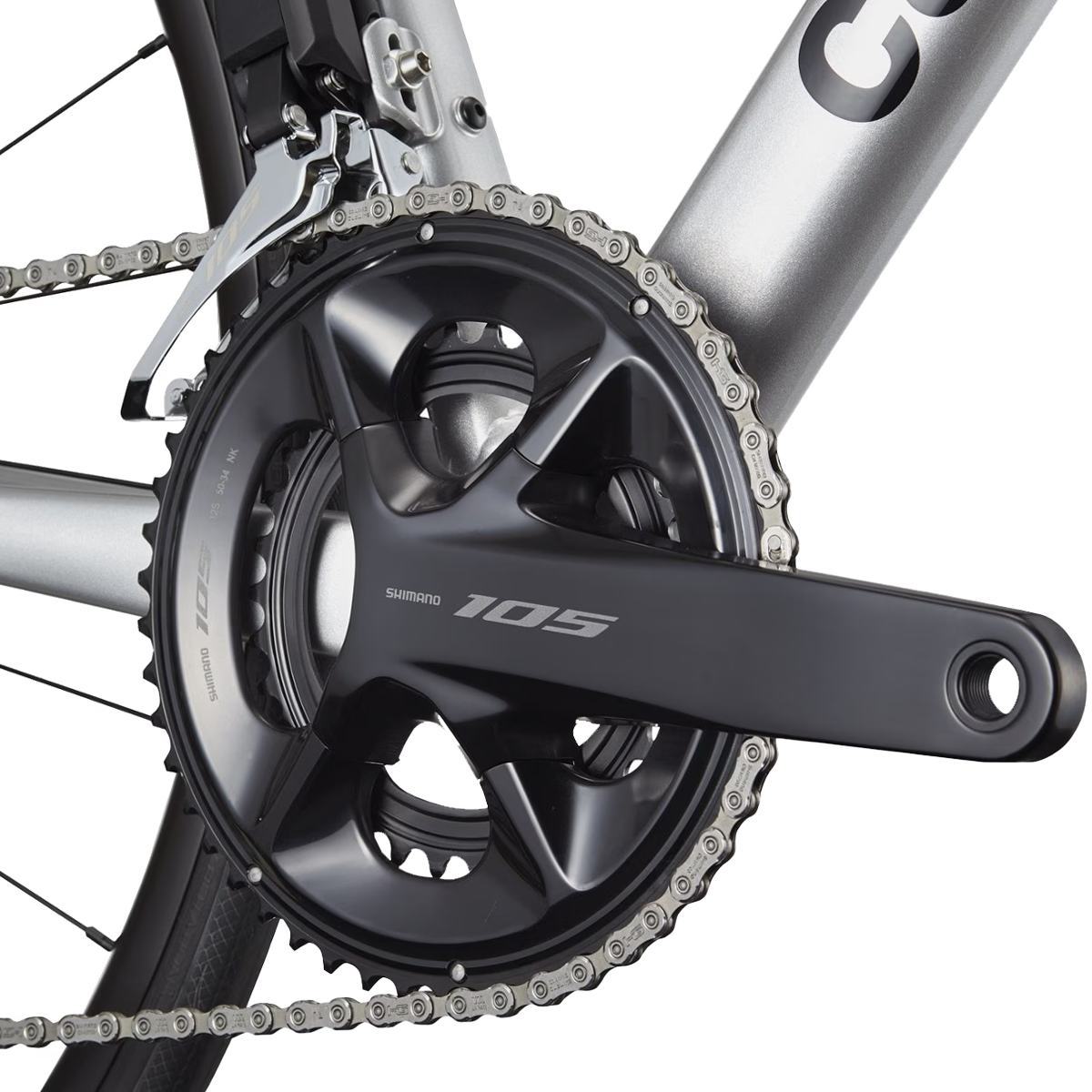

CRANK	Shimano 105 7100, BSA, 50/34
REAR COGS	Shimano 105 7100, 12-speed, 11-34
BOTTOM BRACKET	FSA PF30a BB for 24mm
BRAKES	Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
BRAKE LEVERS	Shimano 105 Di2 7170 hydraulic disc

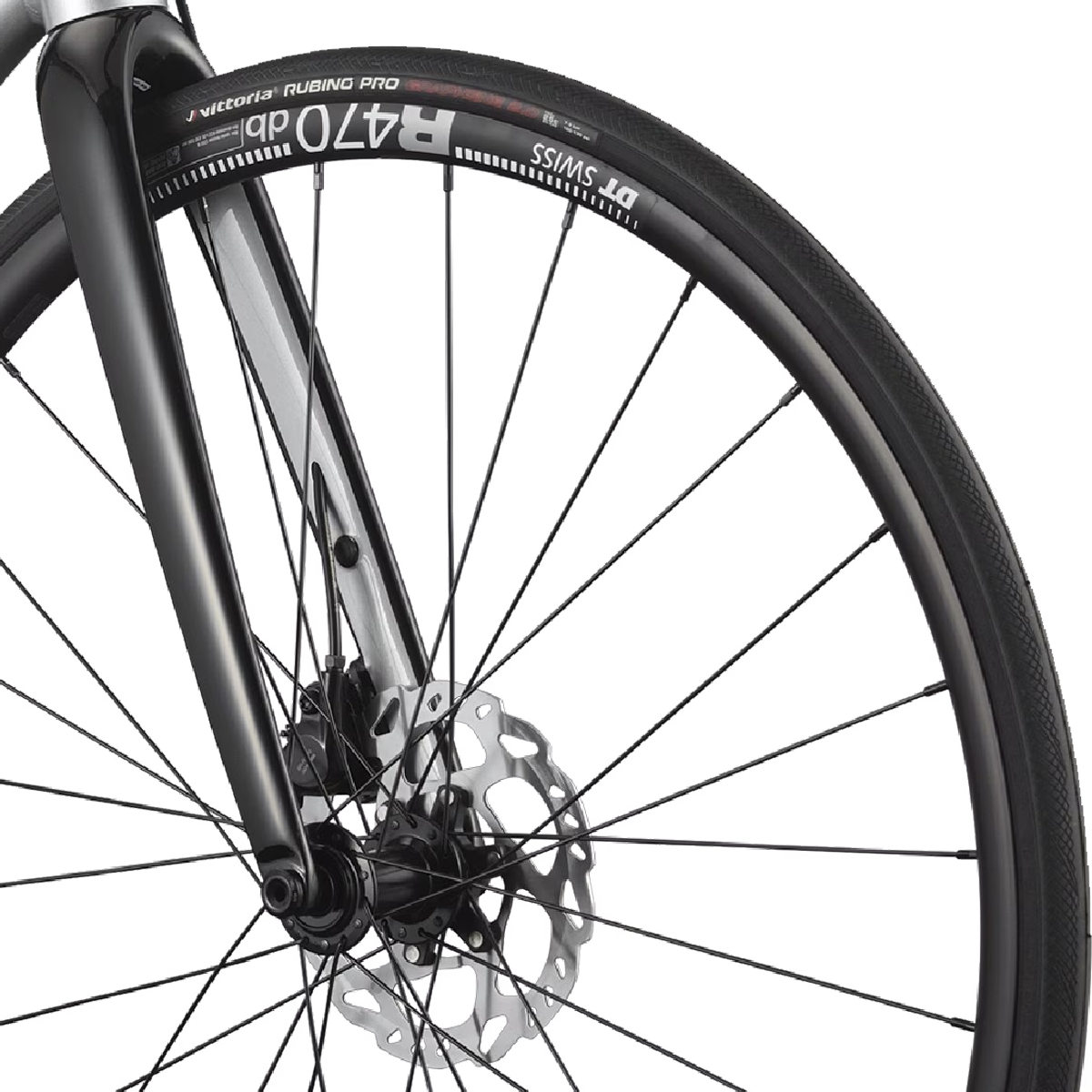

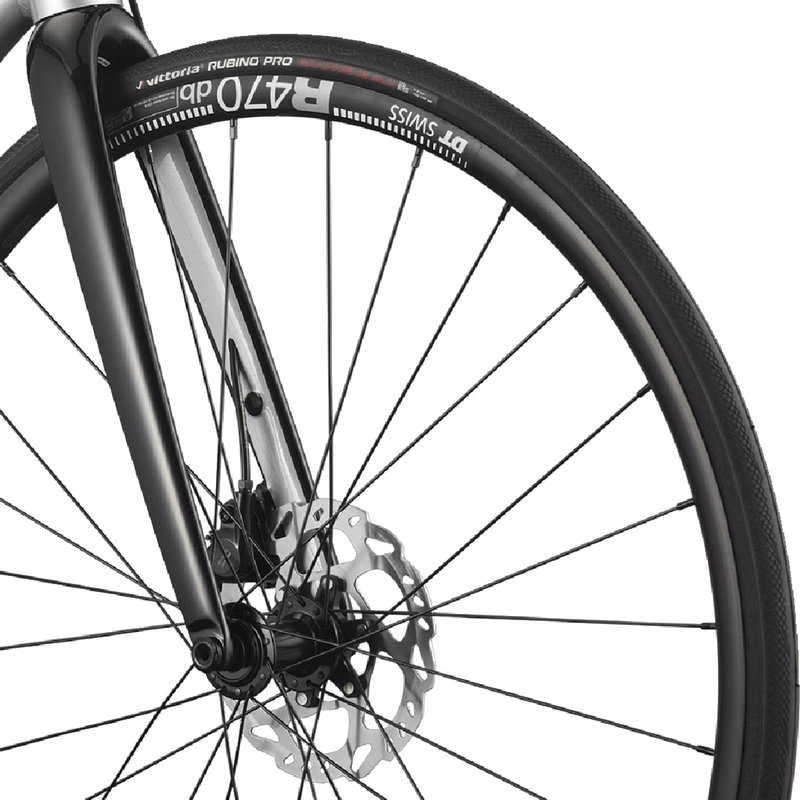

RIMS	DT Swiss R470 db, 28h
HUB, FRONT	Formula CL-712, 12x100mm centerlock
HUB, REAR	Formula RXC-400, 12x142mm centerlock
SPOKES	Stainless Steel, 14g
TIRES	Vittoria Rubino Pro Bright Black, 700x25c, reflective strip

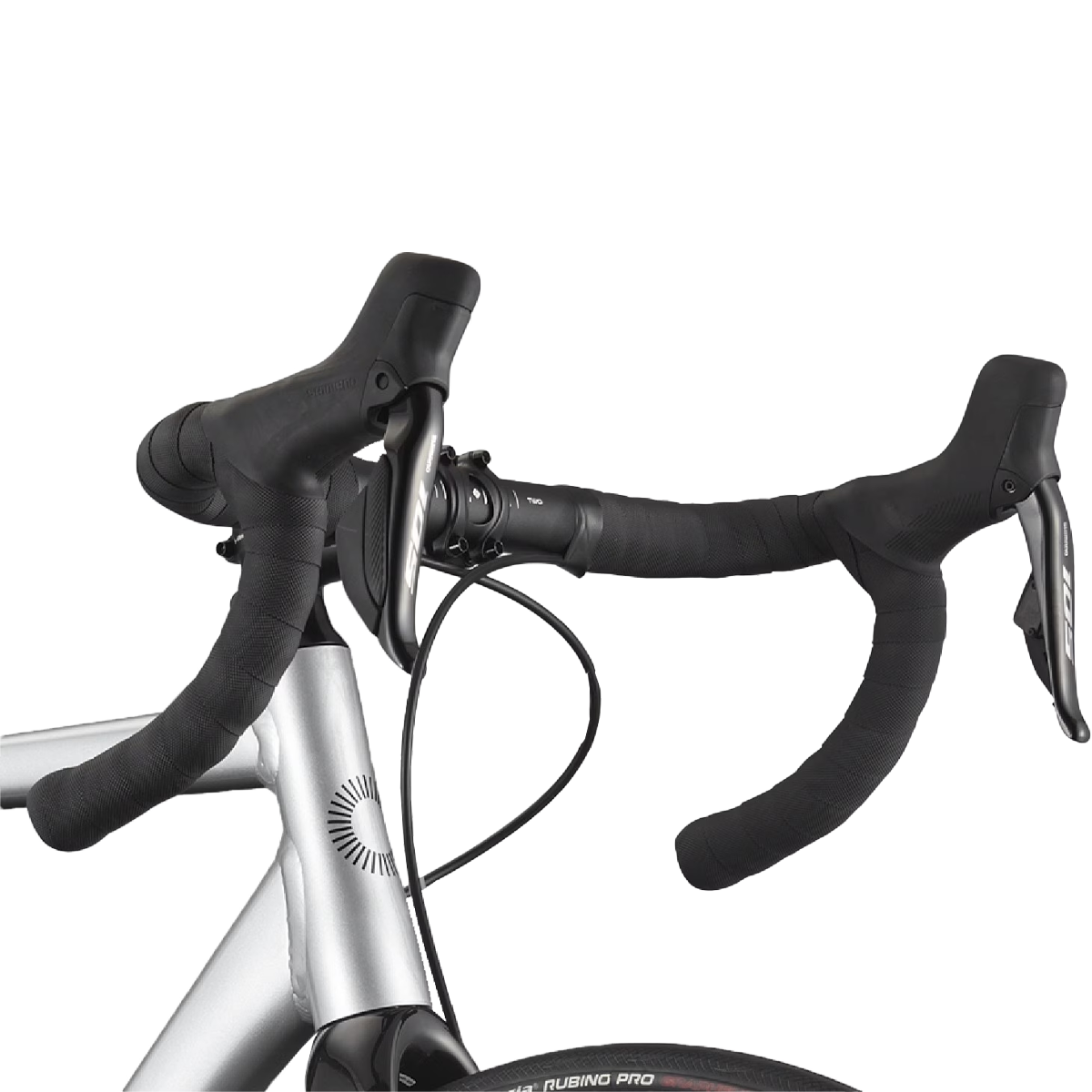

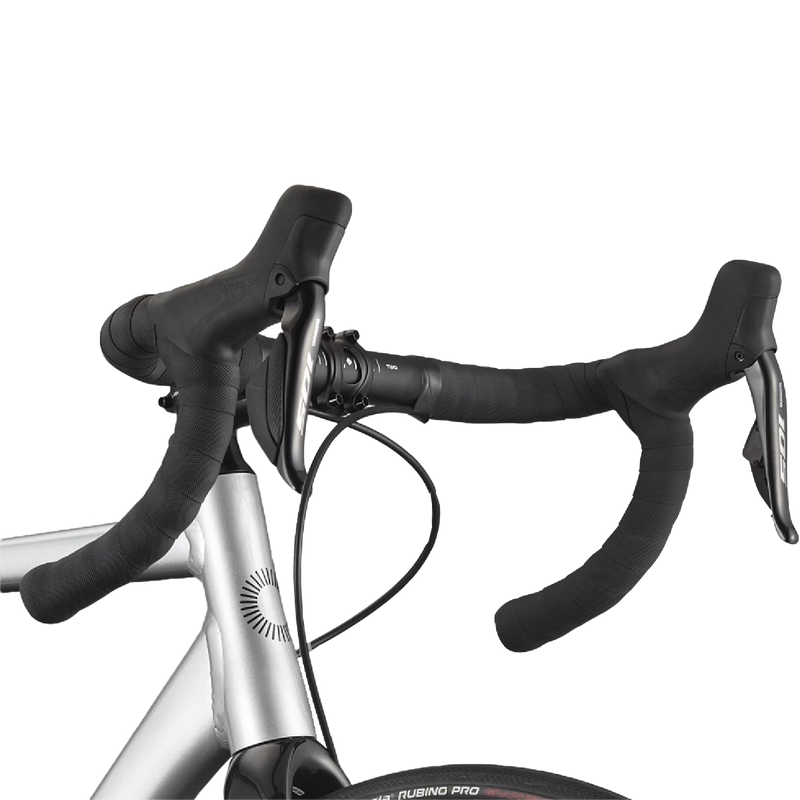

HANDLEBAR	Cannondale 3, 6061 Alloy, Compact
STEM	Cannondale 3, 6061 Alloy, 31.8, 7°
GRIPS	Cannondale Bar Tape, 3.5mm
SADDLE	Prologo Nago RS STN
SEATPOST	HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset (44, 48 cm), 15mm offset (51-62cm)
EXTRAS	Removable fender bridge

* Specs subject to change

		44	48	51	54	56	58	60	62
A	SEAT TUBE LENGTH (CM)	40.4	44.2	48.1	51.9	54	56.2	58.3	60.4
B	TOP TUBE HORIZONTAL (CM)	51	52	53	54.6	56.2	57.8	59.4	61.1
C	TOP TUBE ACTUAL (CM)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
D	HEAD TUBE ANGLE	70.9°	71.2°	71.2°	71.2°	73°	73°	73°	73°
E	SEAT TUBE ANGLE	74.5°	74.3°	74.1°	73.7°	73.3°	72.9°	72.5°	72.1°
F	STANDOVER (CM)	68.6	72.3	75.3	79	80.5	82.9	84.8	86.8
G	HEAD TUBE LENGTH (CM)	9.4	11.4	13	15.4	16.4	18.8	20.9	23
H	WHEELBASE (CM)	97.6	98.5	99.4	100.8	99.2	100.5	101.6	102.8
I	FRONT CENTER (CM)	58.1	58.9	59.8	61.1	59.4	60.7	61.8	63
J	CHAIN STAY LENGTH (CM)	40.8	40.8	40.8	40.8	40.8	40.8	40.8	40.8
K	BOTTOM BRACKET DROP (CM)	7.9	7.4	7.4	7.2	7.2	6.9	6.9	6.9
L	BOTTOM BRACKET HEIGHT (CM)	26.3	26.8	26.8	27.1	27.1	27.3	27.3	27.3
M	FORK RAKE (CM)	5.5	5.5	5.5	5.5	4.5	4.5	4.5	4.5
N	TRAIL (CM)	6.0	5.8	5.8	5.8	5.8	5.8	5.8	5.8
O	STACK (CM)	50.5	52	53.5	55.5	57.5	59.5	61.5	63.5
P	REACH (CM)	37	37.4	37.8	38.4	38.9	39.5	40	40.6

Color Mercury

Size 54 cm Size Chart
