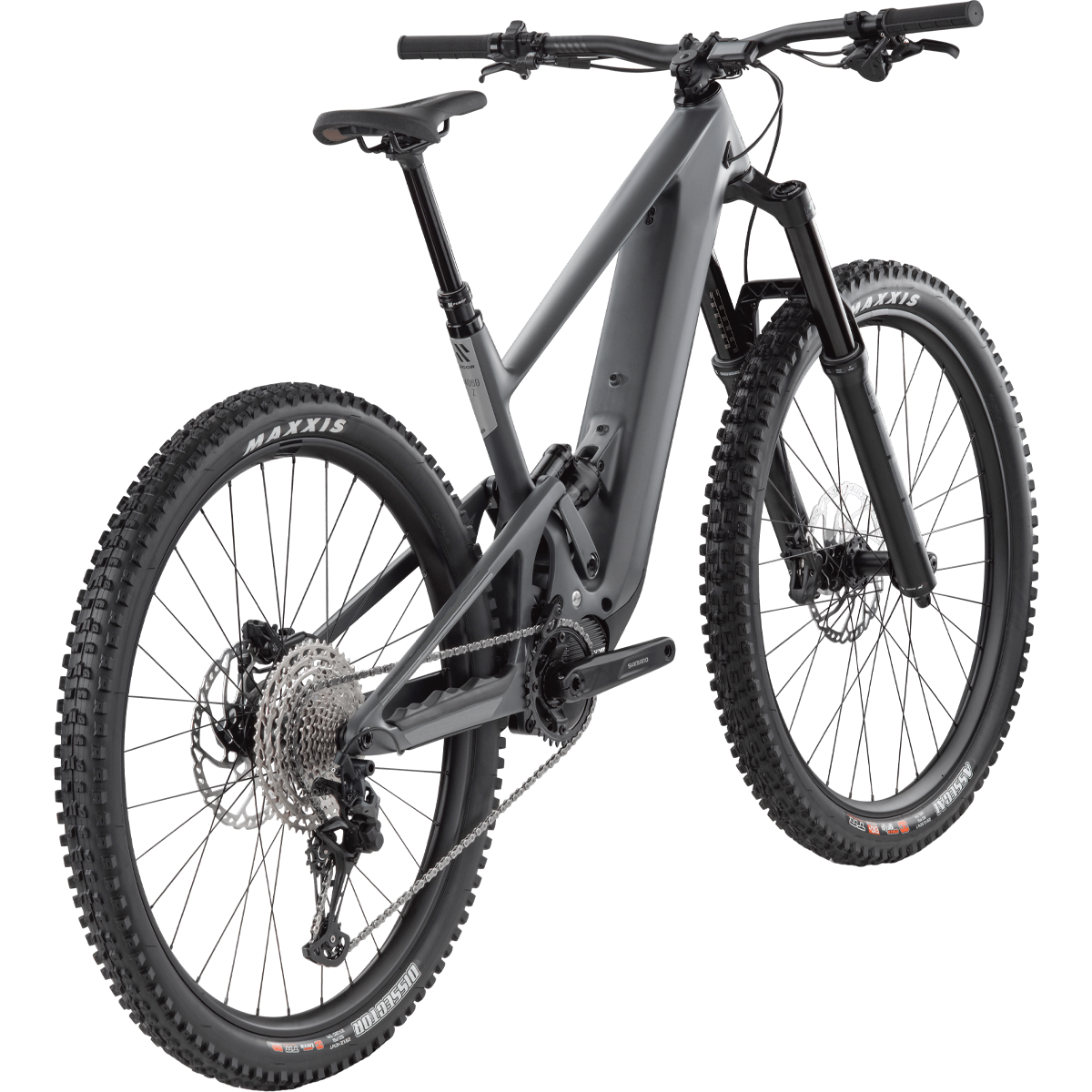

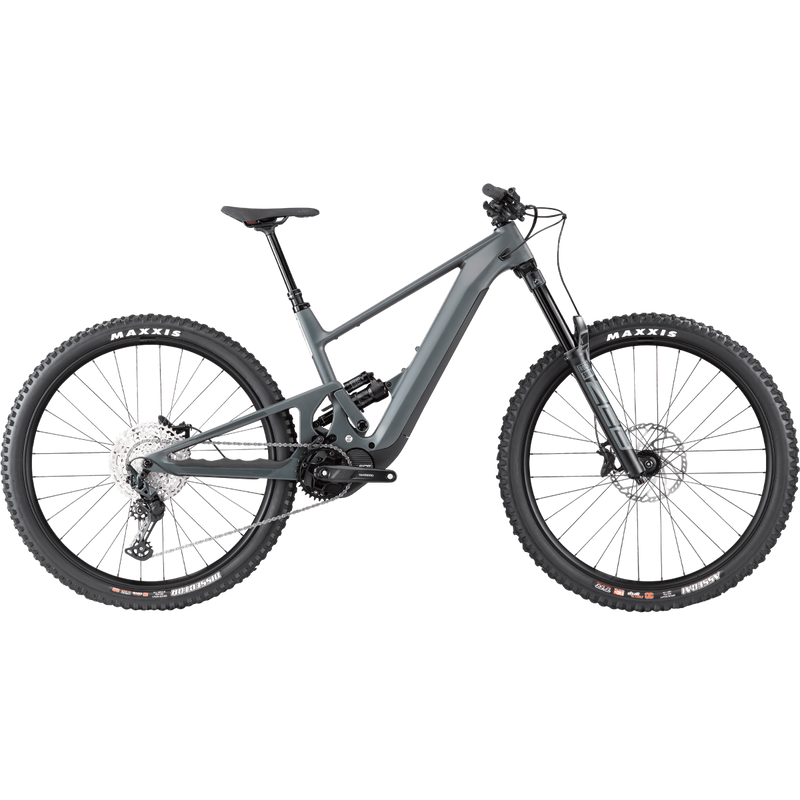

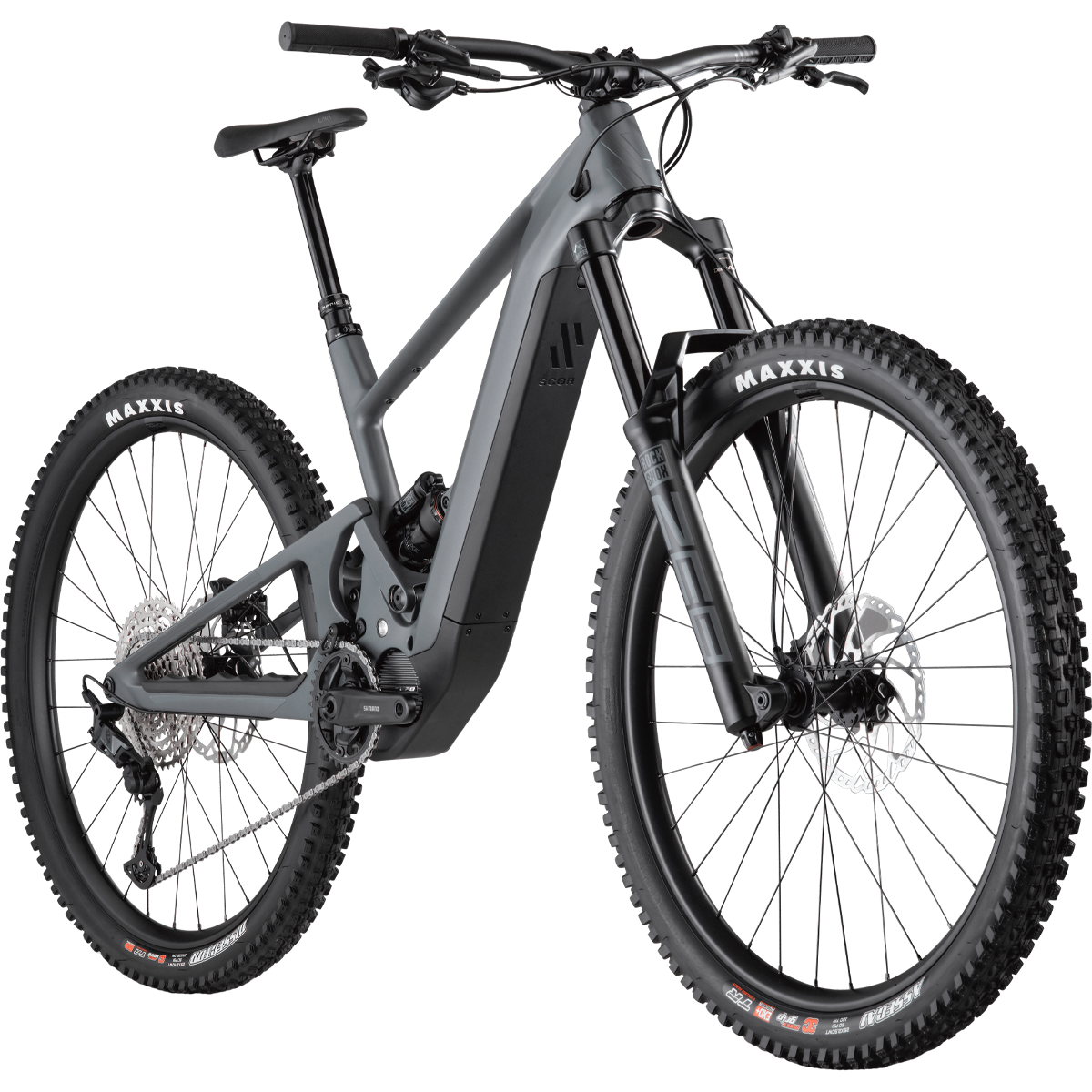

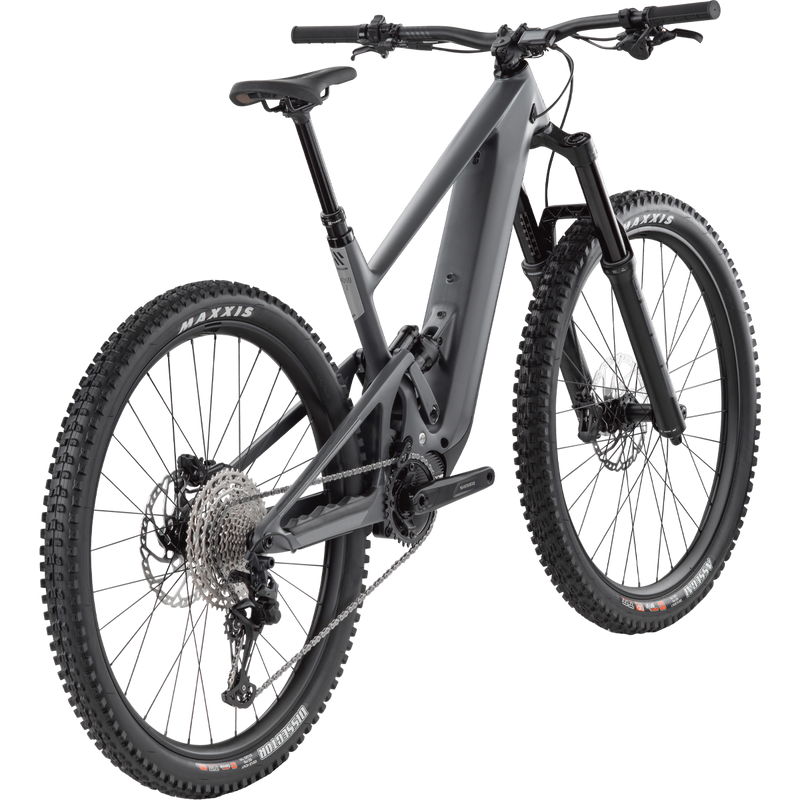

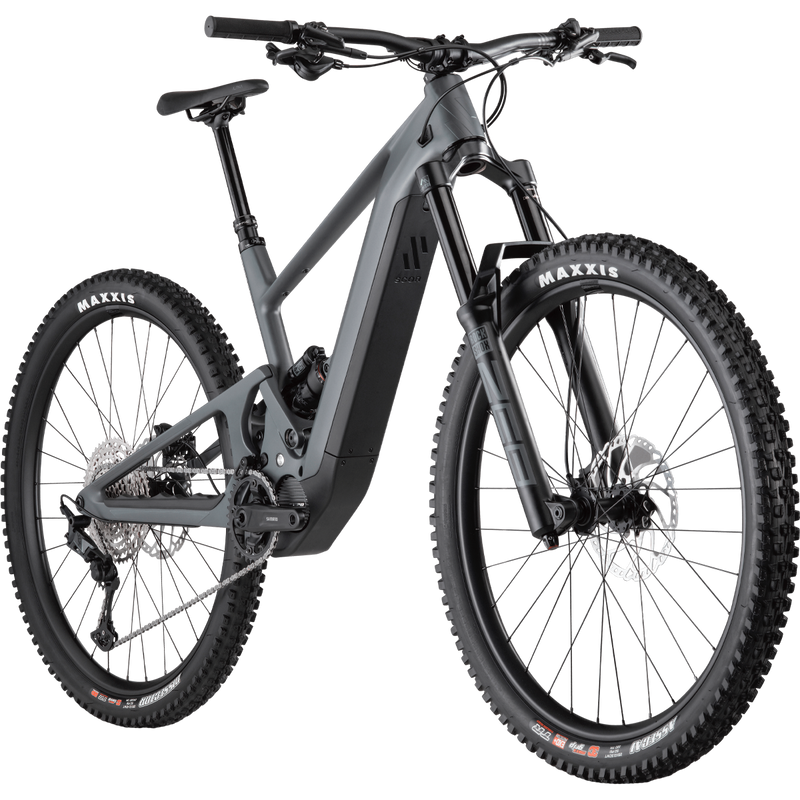

4060 Z LT SLX
With the power to play harder and the capacity to take you further the 4060 Z LT SLX serves up the gnarliest trails at a lightning pace. An enduro bike with extra e, this is the bike for those looking to surge up the toughest climbs and have energy i
With the power to play harder and the capacity to take you further the 4060 Z LT SLX serves up the gnarliest trails at a lightning pace. An enduro bike with extra e, this is the bike for those looking to surge up the toughest climbs and have energy in reserve to charge the descents. A full-carbon frame, quality suspension and a bulletproof selection of components mean you’re good to go from the get-go.
- 29” Wheels
- 160mm Rear
- 170mm Front Travel
- Rockshox ZEB Select
- Rockshox Super Deluxe Select Suspension

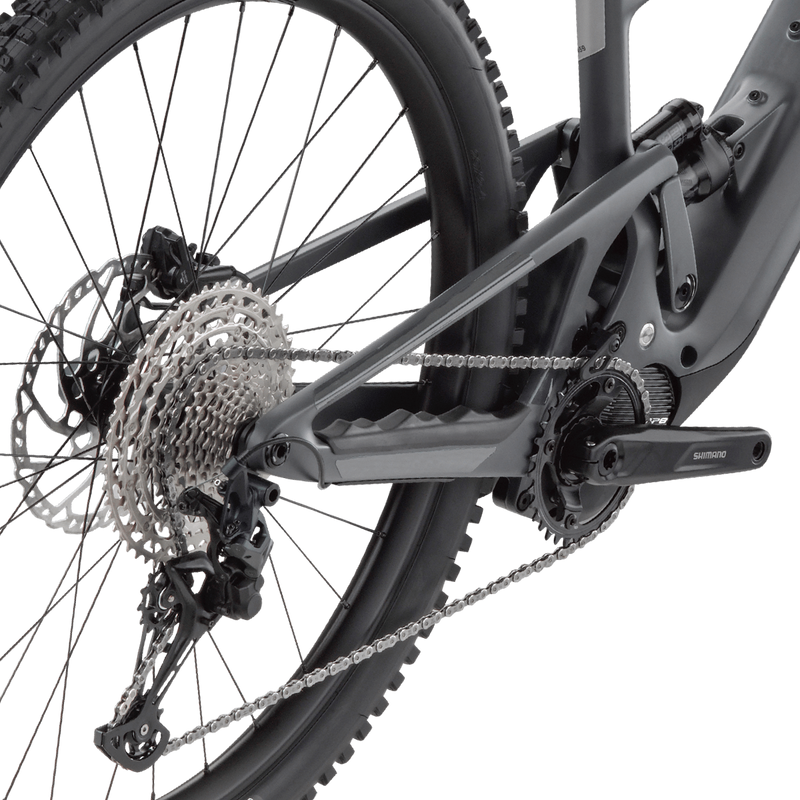

- Shimano SLX Drivetrain
- Shimano Deore Brakes
Returns & Price Matching
| Component | Part |
|---|---|
| DRIVE UNIT | Shimano Steps EP8 (DU-EP800) |
| BATTERY PACK | Darfon 36V | 720Wh | Shimano Steps service included |
| DRIVE UNIT CONTROL | Shimano Steps EP8 Left Switch Unit (SW-EM800-L) |
| DISPLAY | Shimano Steps EP8 Wireless Cycle Computer (SC-EM800) |
| CHARGER | Darfon Smart Plus 100-240V | 4A | EU |
| FRAME | SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Fully guided internal cable routing | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide |
| FORK | RockShox ZEB Select RC | 170mm travel | 44mm rake |
| FRONT SUSPENSION | RockShox ZEB Select RC | 170mm travel | 44mm rake |
| REAR SUSPENSION | RockShox Super Deluxe Select | Rebound adjust | Bearing mount |

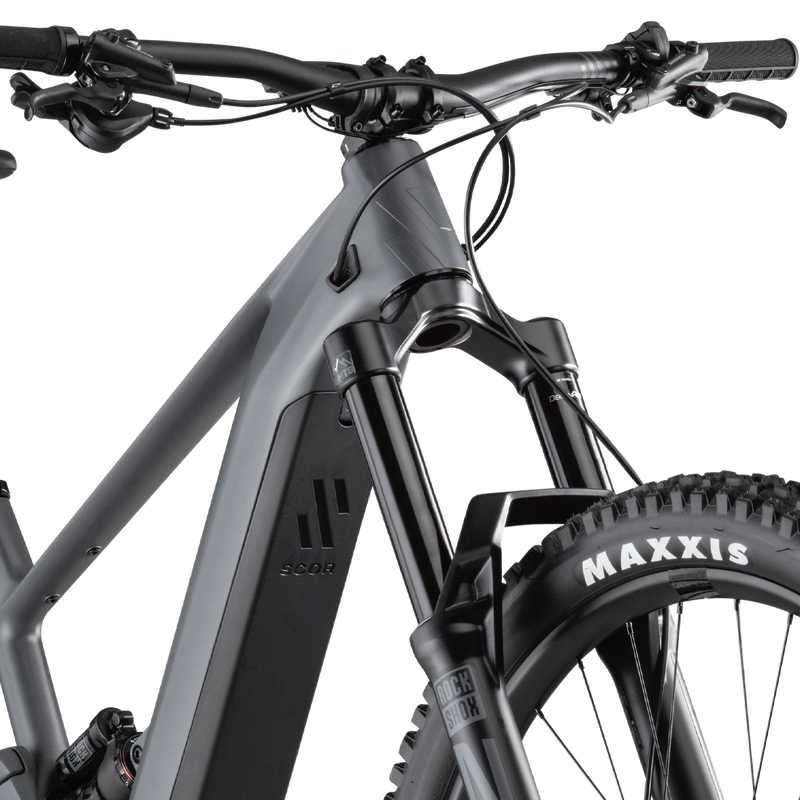

| HANDLEBAR | SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 9° backsweep |
| GRIPS | VP VPG-125A |
| STEM | SCOR Alloy Stem | 3D forged | 31.6mm bar bore | 35mm lenght | 0deg angle |
| SEATPOST | X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm travel |
| SADDLE | Fizik Terra Alpaca X5 |
| GEARS | 1 x 12 |
| CRANKSET | Shimano FC-EM600 | 165mm length | 34T chainring (SM-CRE80-12-B) |
| CASSETTE | Shimano Deore (CS-M6100-12) | 10-51T |
| CHAIN | Shimano Deore (CN-M6100) |
| BRAKE LEVERS / CALIPERS | Shimano Deore | BR-M6120 calipers | BL-M6100 levers |
| ROTORS | SHIMANO SM-RT66 rotors | 203mm |
| RIMS | XDH-130 | 32 spokes | 6061-T6 alloy | welded joint | 30mm internal width | Tubeless ready |
| HUBS (F/R) | XDH-130 | 32 spokes | Sealed cartridge bearings |
| TIRES | Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R) |
| TUBELESS INFORMATION | Tubeless ready rims | Tubeless tires |
| TIRE CLEARANCE | Width: 64mm | Diameter: 750mm |
| ACCESSORIES | Slicy Protector |
| ASTM CLASSIFICATION | Level 4 |
| WEIGHT LIMIT | 130kg |
* Specs subject to change
